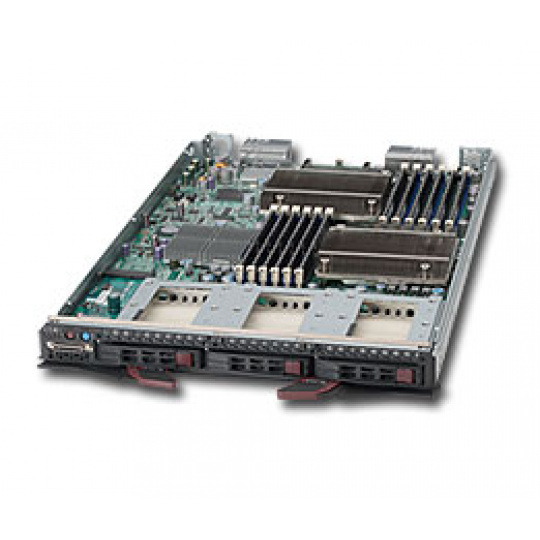

Key Features 1. 168 CPUs per 42U Rack 2. Intel® Xeon® processor E5-2600 family; QPI up to 8.0 GT/s 3. Intel® C602J Chipset 4. Up to 256GB RDIMM or 64GB UDIMM; 16 DIMM slots 5. Intel® I350 Dual port GbE Controller 6. 4x QDR (40Gb) InfiniBand or 10GbE mezzanine HCA 7. IPMI 2.0, KVM over IP, Virtual Media 8. 3x 2.5" Hot-swap SATA HDD Bays 9. Integrated Matrox G200eW Graphics Product SKUs SBI-7427R-T3 Processor Blade SBI-7427R-T3 (Black) Motherboard Super B9DRI Processor/Cache CPU Intel® Xeon® processor E5-2600 Dual Socket R (LGA 2011) Cache Up to 20MB System Bus QPI up to 8 GT/s System Memory Memory Capacity 16x 240-pin DDR3 DIMM sockets Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) Supports up to 64 GB DDR3 ECC Unbuffered memory (UDIMM) Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB Memory Voltage 1.5 V and 1.35 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC) On-Board Devices Chipset Intel® C602J chipset InfiniBand Support 4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional) SATA Intel C602J SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) IPMI Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) Network Controllers Intel® I350 Dual port Gigabit Ethernet Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization Super I/O Nuvoton W83527 System BIOS BIOS Type 64Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support Dimensions Height 11.32" (288 mm) Width 1.19" (30.2 mm) Depth 18.9" (480mm) Weight 8.6 lbs (3.9 kg) Available Colors Black Front Panel Buttons Power On/Off button KVM button LEDs Power LED UID / KVM LED Network Activity LED Fault LED Connector SUV (Serial/USB/Video) & KVM Connector Drive Bays Hot-swap 3x 2.5" SAS/SATA Hot-swap drive bays Input / Output KVM 1 Front Connector for Supermicro KVM Card Operating Environment / Compliance Environmental Spec. Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) Electromagnetic Compatibility (EMC) United States / Canada FCC- Emissions (US) Verification Europe EN55022 - Emissions EN55024 - Immunity EN61000-3-2 - Harmonics EN61000-3-3 - Voltage Flicker CE - EMC Directive 89/336/EEC Safety Compliance United States / Canada UL60950-1 - CSA/CUL 60950-1 Europe EN60950-1, CE - Low Voltage Directive 73/23/EEE Germany TUV Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-B9DRI-O-P CSE-714M-230B 1 1 Blade with default SATA and option for SAS 14-Black Front Blade With Three 2.5" HDD Hard Drive Tray MCP-220-00047-0B 3 Black 2.5" Hard Drive Tray Front Panel Control MCP-280-KVM1 1 Power & KVM buttons, LED, KVM connector Optional Parts List Part Number Qty Description Heatsink / Retention SNK-P1033P 2 Heatsink for Intel CPU Networking AOC-XEH-iN2 AOC-IBH-XDD AOC-IBH-XQD AOC-IBH-XQS AOC-IBH-XDS 1 1 1 1 1 Dual Port 10G Ethernet AOC for Blade InfiniBand Dual-Port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip) InfiniBand Dual-Port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX-2 chip) InfiniBand Single port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX chip) InfiniBand Single port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip)
