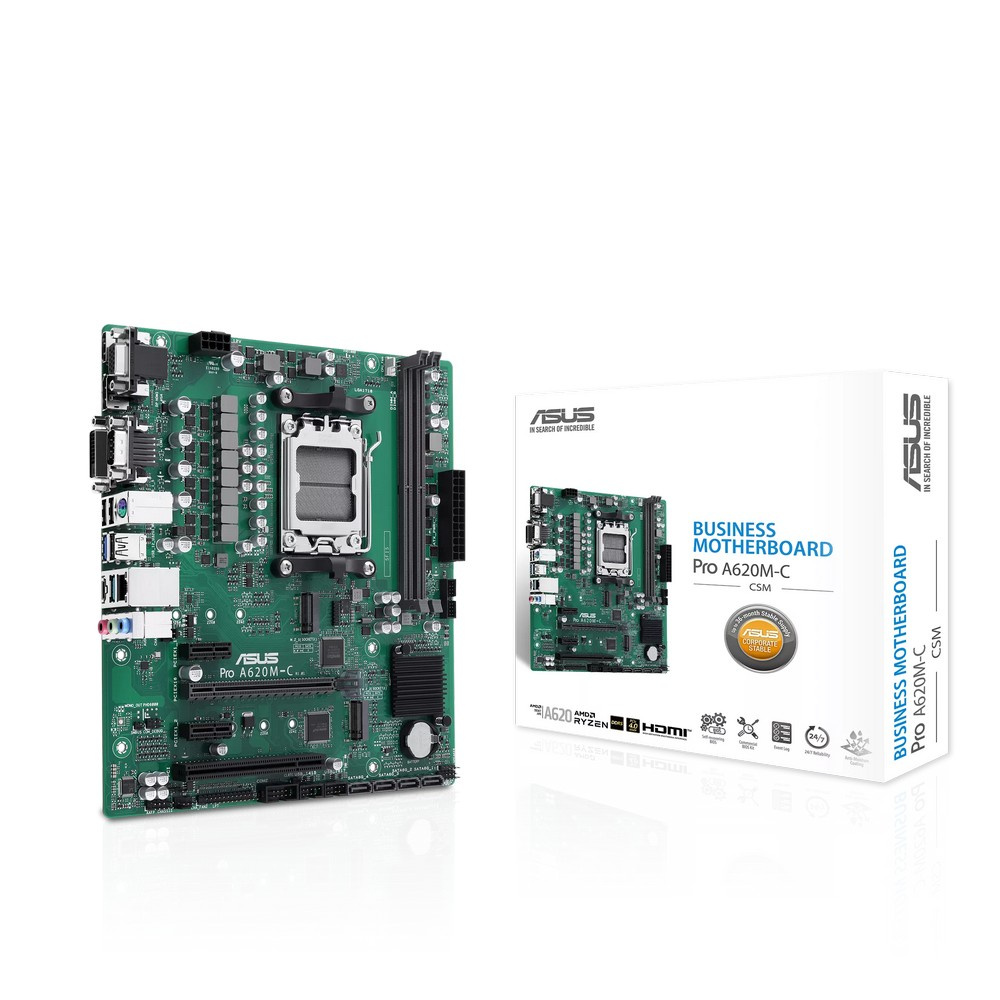

Základná doska AMD A620 Micro-ATX pre firmy so zvýšeným zabezpečením, spoľahlivosťou, správou a údržbou Pätica AM5 pre stolové procesory AMD Ryzen™ Program ASUS CSM: Stabilná dodávka základných dosiek, upozornenia na koniec životnosti a IT softvér pre firemné základné dosky ASUS Control Center Express: Integrovaný softvér na monitorovanie a správu IT, ktorý zjednodušuje správu systému na podnikovej úrovni Vylepšené zabezpečenie systému: Samoobnoviteľný BIOS Konzistentný a spoľahlivý výkon: Vysokokvalitné komponenty a prísne testovanie pomáhajú zabezpečiť odolnosť v náročných prostrediach Efektívna správa a prispôsobenie: Denník udalostí a komerčná sada BIOS pre jednoduchú údržbu Lepšia údržba: Diagnostický displej Q-LED Core a ladenie COM portu pre uľahčenie procesov zostavovania a podpory Ultrarýchle pripojenie: DDR5, dva sloty M.2 PCIe 4.0, zadný USB 3.2 Gen 2 Type-C® a predný USB 3.2 Gen 1 port Model Pro A620M-C-CSM CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list. Chipset AMD A620 Chipset Memory 2 x DIMM slots, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x VGA port 1 x DVI-D port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 (5G) port (1 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 (5G) port (1 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 1 x COM port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection * Please contact local FAE for commercial BIOS kit. Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x ACC Express Activation Key Card 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
