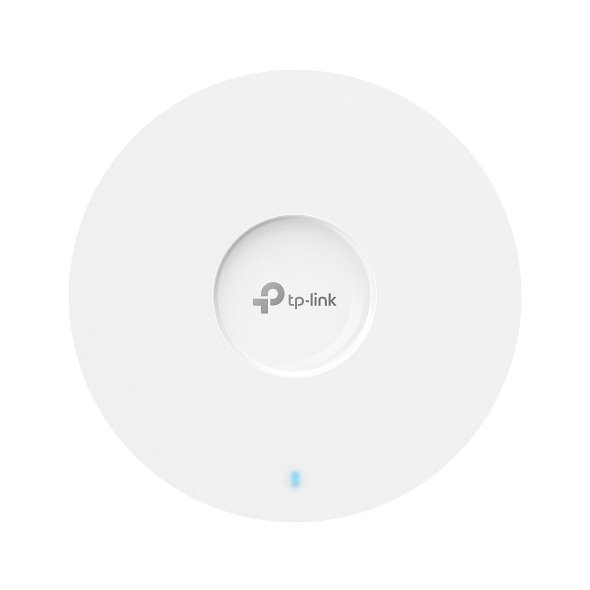

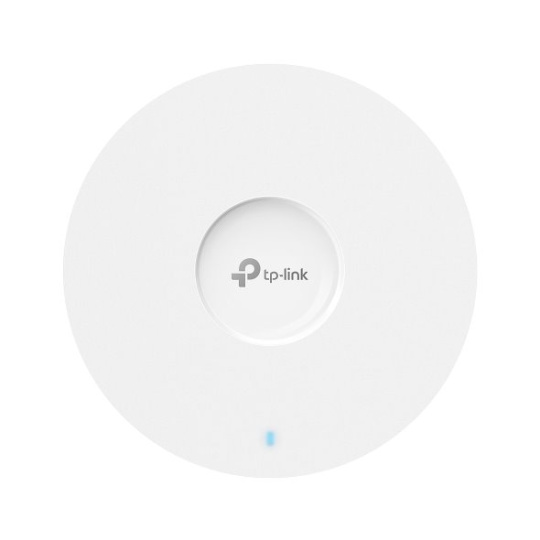

AX5400 Ceiling Mount WiFi 6 Access Point
Popis a parametre
AX5400 Ceiling Mount WiFi 6 Access Point
EAP673 Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop Extrémně rychlé rychlosti WiFi 6 (574 Mbps na 2.4 GHz + 4804 Mbps na 5 GHz).† Integrované do Omada SDN, podporující centralizovanou správu v cloudu, ZTP* a další funkce. 160 MHz kanál zdvojnásobuje přenos dat při maximální rychlosti na jednom streamu.‡ Pokročilé funkce: Podporuje bezešvé roaming§, Omada Mesh§ a další. Podporuje napájení přes 802.3at PoE+ a DC (adaptér není součástí balení) pro flexibilní instalace.
HARDWARE FEATURES Interface 1× 2.5 Gigabit RJ45 Port Button Reset Power Supply • 802.3at PoE • 12 V / 2 A DC (Power Adapter Not Included) Max. Power Consumption • EU: 20.8 W • US: 22.3 W Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi Bluetooth V5.2 Mounting Ceiling / Wall / Junction Box Mounting (Kits Included) WIRELESS FEATURES Coverage 1500 ft2 (140?)* Concurrent Clients 250+** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (5G: 4x4 DL/UL MU-MIMO) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)? • Omada Mesh? • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication? • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) 7-30 dBm(5 GHz, U-NII-2C, EIRP) • FCC: 4-22 dBm (2.4 GHz) 4-22 dBm (5 GHz, U-NII-1 & U-NII-3) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Content • EAP673 • Ceiling/Wal/Junctionl Mounting Kits • Installation Guide • Cable Compartment Cover System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
HARDWARE FEATURES Interface 1× 2.5 Gigabit RJ45 Port Button Reset Power Supply • 802.3at PoE • 12 V / 2 A DC (Power Adapter Not Included) Max. Power Consumption • EU: 20.8 W • US: 22.3 W Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi Bluetooth V5.2 Mounting Ceiling / Wall / Junction Box Mounting (Kits Included) WIRELESS FEATURES Coverage 1500 ft2 (140?)* Concurrent Clients 250+** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (5G: 4x4 DL/UL MU-MIMO) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)? • Omada Mesh? • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication? • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) 7-30 dBm(5 GHz, U-NII-2C, EIRP) • FCC: 4-22 dBm (2.4 GHz) 4-22 dBm (5 GHz, U-NII-1 & U-NII-3) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Content • EAP673 • Ceiling/Wal/Junctionl Mounting Kits • Installation Guide • Cable Compartment Cover System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
AX5400 Ceiling Mount WiFi 6 Access Point
