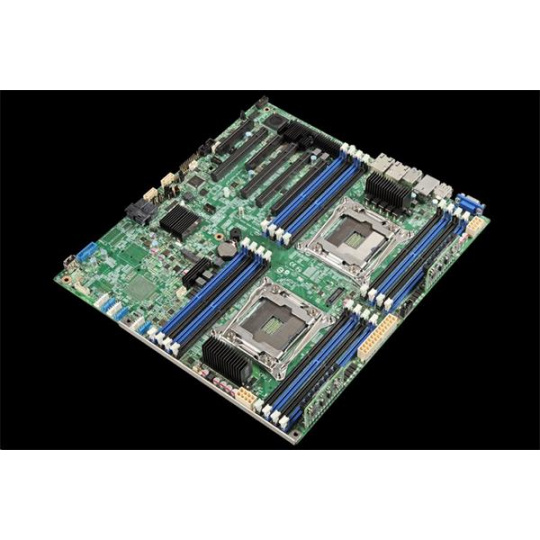

Specifications -Essentials Status Launched Launch Date Q4'14 Expected Discontinuance Q4'19 Limited 3-year Warranty Yes Extended Warranty Available for Purchase (Select Countries) Yes # of QPI Links 2 Compatible Product Series Intel® Xeon® processor E5-2600 v3 product family Board Form Factor SSI EEB 12" x 13" Chassis Form Factor Rack or Pedestal Socket Socket R3 Integrated Systems Available No Integrated BMC with IPMI IPMI 2.0 with OEM extensions Rack-Friendly Board Yes Embedded Options Available No TDP 145 W Included Items (1) Intel® Server Board S2600CW2, (1) I/O shield, (2) SATA cables, (1) Quick Start User’s Guide, (1) Attention document, and configuration labels Recommended Customer Price N/A Datasheet Link Board Chipset Intel® C612 Chipset (Intel® DH82029 PCH) Description A general purpose server board supporting two Intel® Xeon® processor E5-2600 V3 family up to 145W, 16 DIMMs, and two 1-Gb ethernet ports Target Market Embedded Additional Information URL Link -Memory Specifications Max Memory Size (dependent on memory type) 1024 GB Memory Types DDR4 ECC RDIMM 1600/1866/2133, DDR4 ECC LRDIMM 1600/1866/2133 Max # of Memory Channels 8 Max Memory Bandwidth 136 GB/s Physical Address Extensions 46-bit Max # of DIMMs 16 ECC Memory Supported ‡ Yes -Graphics Specifications Integrated Graphics ‡ Yes Graphics Output VGA Discrete Graphics Supported -Expansion Options PCI Express Revision 3.0 Max # of PCI Express Lanes 84 PCIe x8 Gen 3 1 PCIe x16 Gen 3 4 PCIe x4 Gen 2.x 1 -I/O Specifications USB Revision 2.0 & 3.0 # of USB Ports 7 Total # of SATA Ports 10 RAID Configuration PCH SATA 6G, ESRT2 RAID 0,1,10 # of Serial Ports 1 # of LAN Ports 2 Integrated LAN 2x 1-GbE Firewire No Embedded USB (eUSB) Solid State Drive Option Yes Integrated SAS Ports 0 Integrated InfiniBand* No -Package Specifications Max CPU Configuration 2 Low Halogen Options Available See MDDS -Advanced Technologies Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® Remote Management Module Support Yes Intel® Node Manager Yes TPM Version 1.2 Intel® Quick Resume Technology No Intel® Quiet System Technology No Intel® HD Audio Technology No Intel® Matrix Storage Technology No Intel® Rapid Storage Technology No Intel® Rapid Storage Technology enterprise Yes Intel® Fast Memory Access Yes Intel® Flex Memory Access Yes Intel® I/O Acceleration Technology Yes Intel® Advanced Management Technology Yes Intel® Server Customization Technology Yes Intel® Build Assurance Technology Yes Intel® Efficient Power Technology Yes Intel® Quiet Thermal Technology Yes -Intel® Data Protection Technology AES New Instructions Yes -Intel® Platform Protection Technology Trusted Execution Technology ‡ Yes
