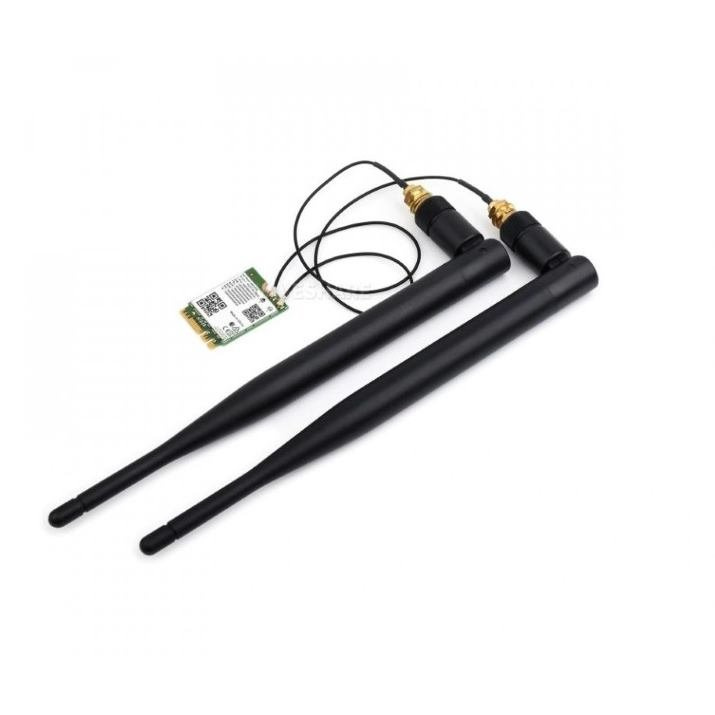

NTEL® WI-FI 6E AX210 (GIG+) COMMERCIAL TEMPERATURE IOT EMBEDDED KIT TECHNICAL SPECIFICATIONS General Retail Single Box Dimensions (H x W x D) 145mm x 205mm x 26mm Retail Single Box Weight 143.5g Overpack 5u Dimensions (H x W x D) 160mm x 230mm x 150mm Overpack 5u Weight 727.5g RF Cable 2ft. length coaxial cable OD 1.13 mm FEP Black Jacket Antenna Dual-band: Frequency 2.4-2.5GHz/5.515-7.125GHz, SMA plug Motherboard Connector Interface M.2: Key E or A for wireless Radio ON/OFF Control Supported Connector SMA, male, brass, gold plated, insulated; MHF IV plug, gold plated Use Conditions For details on Intel Embedded use conditions, please contact your Intel Account Manager Operating Ambient Temperature 0°C to +70°C Non-operating 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) Operating Systems Microsoft* Windows* 10 Enterprise LTSC, Linux* Wi-Fi Alliance5 Wi-Fi CERTIFIED* 6, Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM*-Power Save, WPA2*, WPA3*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Agile Multiband*, and Wi-Fi Timesync* IEEE WLAN Standard IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) hardware readiness6 Bluetooth® Bluetooth® 5.3 Availability and Support Long-life availability Long-life Intel Support Security Security Methods7 WPA2*; WPA3* Authentication Protocols 802.1x EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA') Encryption 128-bit AES-CCMP, 56-bit AES-GCMP Compliance Regulatory For a list of country approvals, please contact your local Intel representatives. Product Safety UL, C-UL, CB (IEC 60950-1) US Government FIPS8 140-2 EXPERIENCE THE INTEL® DIFFERENCE Worldwide Regulatory Support Intel® Dynamic Regulatory Solution Enables performance-optimized worldwide regulatory compliance on a single adapter SKU. The Intel® Wi-Fi 6E AX210 (Gig+) Commercial Temperature IoT Embedded module detects its location and automatically optimizes the Wi-Fi settings to local regulatory requirements, optimizing performance in each geography, simplifying global enterprise procurement. Future regulatory changes are easily managed during the product life cycle. Wireless Functionality in Pre-boot Environment Support for Wi-Fi network and Bluetooth® Low Energy HID connectivity in the platform UEFI (Unified Extensible Firmware Interface) environment during its boot stage. This capability enables use cases like OS recovery over Wi-Fi and Bluetooth® Low Energy-based keyboard and mouse connectivity in this pre-boot environment. BUSINESS-CLASS WIRELESS Built for IoT The Intel® Wi-Fi 6E AX210 (Gig+) Commercial Temperature IoT Embedded kit combines long-life support and long-life availability, pre-validation on Intel IoT platforms, as well as wireless Intel® AMT to connect your embedded IoT platforms to other edge devices. Target Wake Time (TWT) is a feature that can be used to extend the battery life of remote Wi-Fi 6E sensors.
