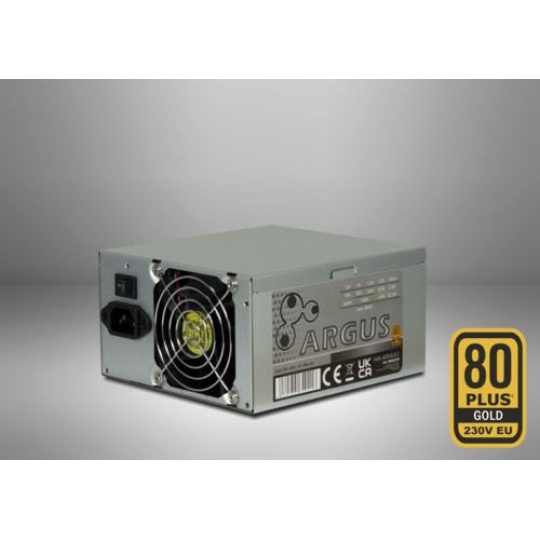

INTER-TECH zdroj server IPC HA-600AA2 600W
Features 600Watt power supply 80PLUS EU Gold Rear-mounted 80mm fan Numerous connections for mainboard, drives and peripherals Input Input voltage Frequency Power consumption AC 200 - 240 V~ 50 Hz 8A @230V Output Output voltage + 3.3V + 5V + 12V - 12V + 5Vsb Total rated power Rated power 3.3V + 5V Voltage tolerance Ripple/ Noise Rated current max. 20A max. 20A max. 50A max. 0.3A max. 2.5A max. 600W max. 100W +/- 3% <50mV @ +3.3V, +5V, +5Vsb <100mV @ +12V <120mV @ -12V Safety Overload protection Overvoltage protection Overcurrent protection Short-circuit protection No Load Protection + + + + + Economic data Effiziecy @ 10% load @ 20% load @ 50% load @ 100% load Standby power consumption MTBF 84.51 % 90.01 % 92.26 % 91.03 % < 0.30 W 100.000 hrs Environmental Temperature Humidity Altitude 0°C - 40°C (operating) -20°C - 90°C (storage) up to 85% (operating, non condensing) up to 95% (storage, non condensing) 0 - 5000m (operating) 0 - 5000m (storage) Scope of delivery Power supply Power cord Screws Cable ties Manual
