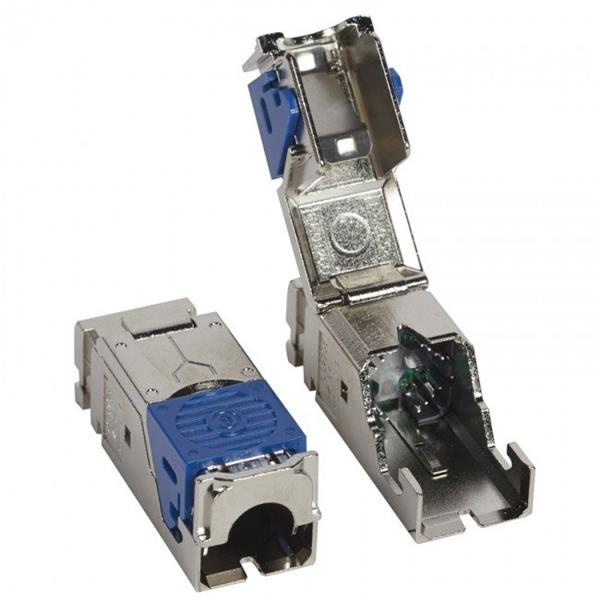

Tento konektor RJ45 sa má inštalovať do plochých alebo uhlových (1U 24 a 48 slotov) patch panelov.

Model Bus (jack)
Type of connector RJ45 8(8)
Screened Yes
Category 6
Connection type Insulation displacement connector
Special tool necessary No
Suitable for round cable Yes
Suitable for flat cable No
Suitable for litz wire conductor Yes
Suitable for solid conductors Yes
Colour Silver
AWG-range 22-26
Width 17.5 mm
Height 20.5 mm
Depth 48.1 mm
Built-in depth 0 mm
Degree of protection (IP) Not applicable
Operating / setting temperature -40-70 °C
Terminal marking indication Yes
RAL-number 0
Antimicrobial treatment No
Label space/information surface No
Mounting method Other
Tube diameter for wall mounted product 0-0 mm
Entry membrane gland type Not applicable
