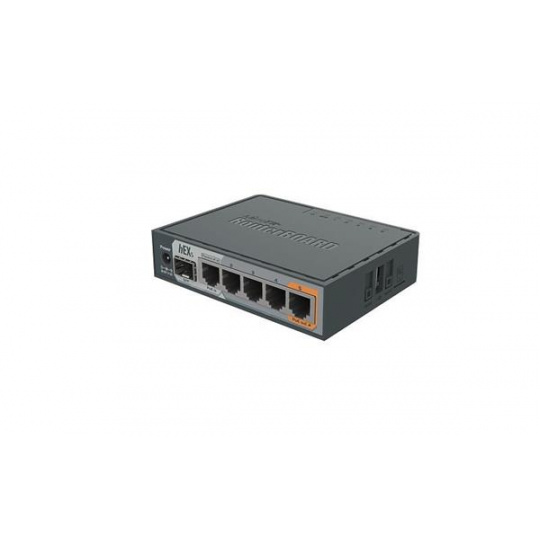

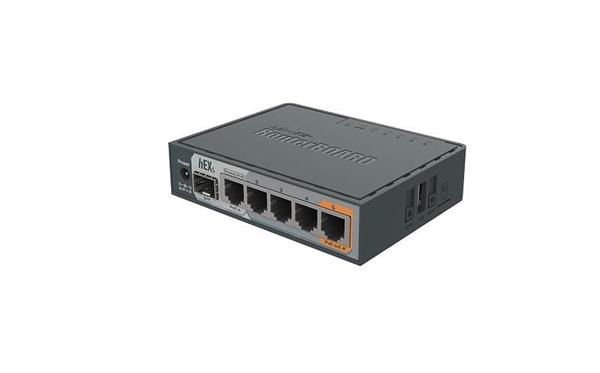

MIKROTIK RouterBOARD hEX S + L4 (880MHz, 256 MB RAM, 5xGLAN, 1x SFP, switch, plastic case, zdroj)
Popis a parametre
MIKROTIK RouterBOARD hEX S + L4 (880MHz, 256 MB RAM, 5xGLAN, 1x SFP, switch, plastic case, zdroj)
Specifications
| Details | |
| Product code | RB760iGS |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| Dimensions | 113 x 89 x 28 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
Powering
| Details | |
| Max Power consumption | 11W |
| PoE in | 802.3af/at |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
| SFP ports | 1 |
Peripherals
| Details | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
