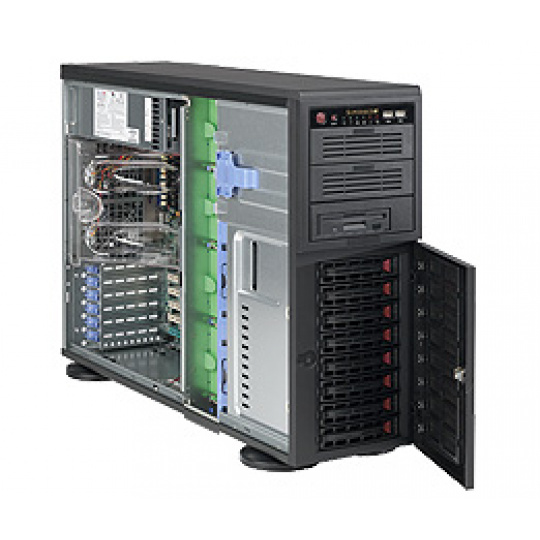

Key Features 1. 920W Platinum Level (94%+) High-efficiency Power Supply 2. 8x SAS/SATA Hot-swap Drive Bays 3. GPU Support 4. Adjustable Air Shroud for flexible Configurations 5. 100% Cooling Redundancy 6. Rack mount / Tower Convertible 7. 2x Front USB Ports 8. Locking Bezel with Filter 9. Tool-less operation 10. Full SES2 support is available with SAS motherboards and other compatible components. Product SKUs CSE-745TQ-920B SuperChassis 745TQ-920B (Black) Form Factor Tower / 4U chassis support for max. motherboard size - 13.68" x 13" (34.7cm x 33cm), ATX, E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 17.2" (437mm) Width 7.0" (178mm) Depth 25.5" (648mm) Gross Weight 58 lbs (26.3kg) Available Colors Black Expansion Slots 7x PCI expansion slots Drive Bays Hot-swap 8x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) 2x 5.25" Peripheral Drive Bay 1x 5.25" Bay that fits 3.5" bay devices SAS / SATA Backplane SAS / SATA Hard Drive Backplane with SES2 Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB Ports System Cooling Fans 3x 5000 RPM Hot-swap PWM Cooling Fans 2x 5000 RPM Hot-swap Rear Exhaust PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 920W high-efficiency (94+%) power supply with PMBus AC Input 100-240 V, 50-60 Hz, 11-4.5 Amp DC Output 4 Amp @ +5V standby 75 Amp @ +12V With Power Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed China - CCC Mark Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-745TQ-920B 1 4U Chassis (Black) HD Backplane CSE-SAS-743TQ 1 SAS / SATA Hard Drive Backplane with AMI MG9072 Chip [ Manual ] Bezel Filter - 1 Front Bezel Filter Cable(s) CBL-0044L CBL-0084 CBL-0087 CBL-0157L CBL-0160L CBL-0216L 4 1 1 1 1 3 SATA Cable (2 Ft, Amphenol) 6" Split Converter Cable Front Panel Ribbon Cable 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives) Power Cord 4 to 4-pin middle fan power extension cable, 200mm (PWM) Fan(s) FAN-0074L4 FAN-0082L4 3 2 5000 RPM Hot-swap PWM Cooling Fan 5000 RPM Hot-swap Rear Exhaust PWM Fan Hard Drive CSE-PT17L-B 8 Black hot-swap 3.5" HDD trays Power Supply PWS-920P-1R PDB-PT745-8824 CSE-PT0130L 1 1 1 920W high-efficiency (94%+) power supply w/ PMBus; optional redundant power upgrade 24-pin redundant power distributor Power supply dummy cover (131x40x76mm) for 700W/800W/900W Air Shroud MCP-310-48001-0N 1 SC745 Intel DP X8.X7 PC Air Shroud [ Manual ] Optional Parts List
