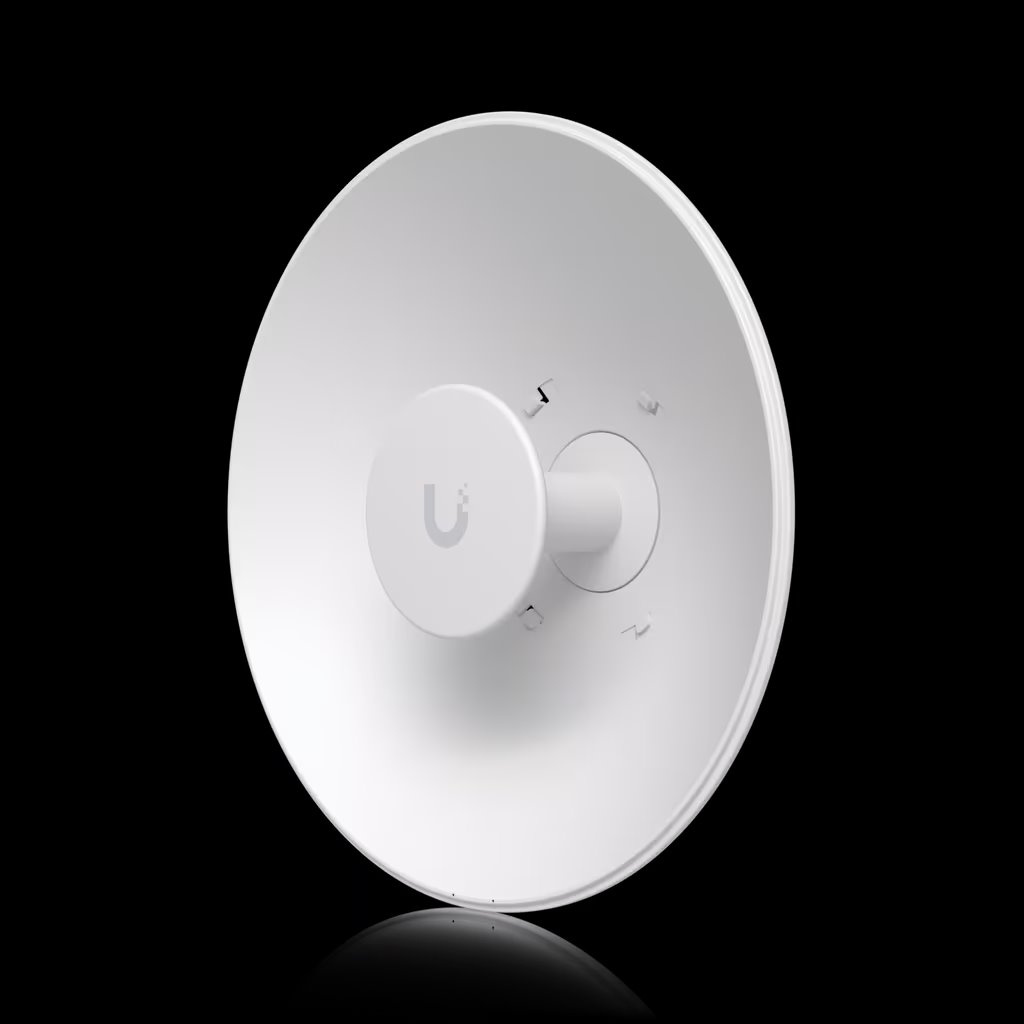

5-7 GHz compact dish with 26 dBi gain and radio direct connect.
Compatibility:
Wave-MLO5
,
RP-5AC-Gen2
,
AF-5XHD

Technical Specifications
Mechanical
Dimensions
Antenna dish: O420 x 140 mm (O25.6 x 7.9")
Antenna dish with Waveguide: O420 x 211.3 mm (O25.6 x 8.3")
Weight
Antenna dish: 1.95 kg (4.3 lb)
Mount: 1 kg (2.2 lb)
Waveguide: 0.45 kg (1 lb)
Enclosure Material
Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate
Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Powder-coated galvanized steel, aluminum alloy
Wind Survivability
Up to 200 km/h (124 mph)
Wind Loading
348 N at 200 km/h (78 lbf at 124 mph)
Mounting
Pole mount
Alignment mounting kit (Included)
Mechanical adjustment: ±20° elevation
Pole Mount Diameter
O1.25–3" (O32–76 mm)
Weatherproofing
IPX6
Hardware
Frequency Range
5.15 to 6.875 GHz
Beamwidth
Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt
0°
Max. VSWR
2:1
Polarization
Dual-Linear
Cross-Pol Isolation
15 dB
NDAA Compliant
Yes
