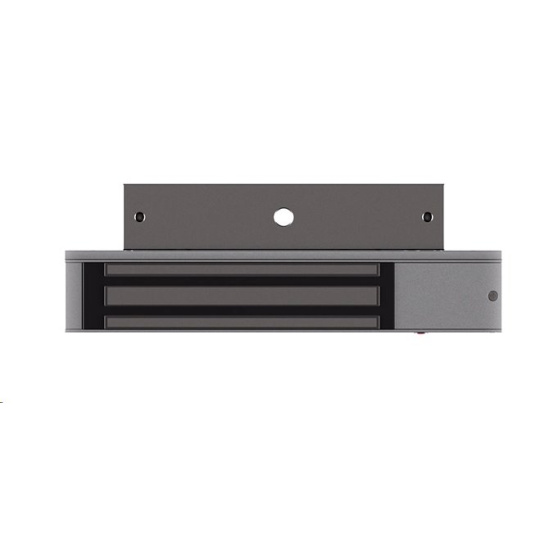

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub. Holds up to 270 kg or 540 kg (600-1,200 lb) Can be installed on a wide variety of door types* Technical Specifications Overview Dimensions UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") Weight UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) Enclosure Material Device/brackets: aluminum Armature: steel Lock Features Lock Type Fail safe Support Door Type UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal) DPS Embedded Holding Force UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) Current Power 500mA ±10% Support Voltage Range 12V DC ±10% Wiring (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow) Mounting UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ? 17 mm (? 0.7") and door gap ? 5 mm (? 0.2") UA-Lock-Magnetic-540kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket LED Indicator Green: unlocked Red: locked Ambient Storage Temperature -20 to 70° C (-4 to 158° F) Ambient Operating Temperature -10 to 60° C (14 to 140° F) Ambient Operating Humidity 5 to 90% noncondensing NDAA Compliant Yes Certifications FCC, IC, CE
