Description
Product name

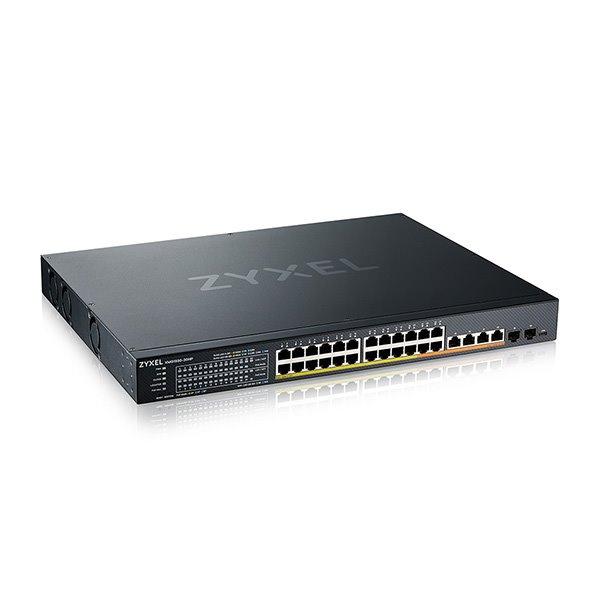

24-Port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink

Port Density
Total port count

30

100M/1G/2.5G Ethernet (RJ-45)

24

1G/2.5G/5G/10G Ethernet (RJ-45)

4

1G SFP/10G SFP+

2

PoE
PoE ports

28

Total PoE budget (Watts)

700

IEEE 802.3at (PoE+)

Port 1 - 20

IEEE 802.3bt (PoE++, 60 W)

100M/1G/2.5G: Port 21 - 24

1G/2.5G/5G/10G: Port 25 - 28

Performance
Switching capacity (Gbps)

240

Forwarding rate (Mpps)

178.5

Packet buffer (byte)

2 MB

MAC address table

16 K

Jumbo frame (byte)

12 K

L3 forwarding table (Max. IPv4/Max. IPv6)

512/512

Routing table

32

IP interface

32/32

Flash/RAM

32 MB/256 MB

Power
Input

100 - 240 V AC, 50/60 Hz

Max. power consumption (watt)

864.1

Physical Specifications
Dimensions
(WxDxH)(mm/in.)

441 x 330 x 44/17.36 x 12.99 x 1.73

Weight
(kg/lb.)

4.85/10.69

Included accessories

Power cord

Power adapter

Rack mounting kit

ESD/Surge Protections
