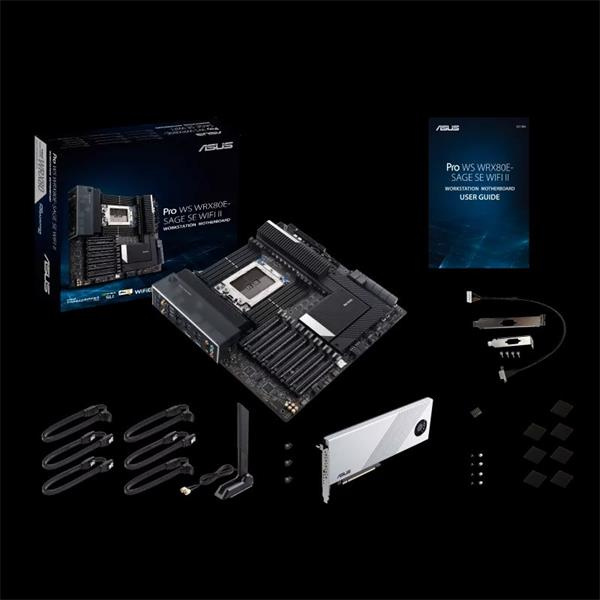

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages, and WIFI 6E AMD sWRX8 Socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors, with overclocking available to dip into untapped potential and performance Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet, WiFi 6E ASMB9-iKVM remote management: AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security Model Pro WS WRX80E-SAGE SE WIFI II CPU AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors* * Refer to www.asus.com for CPU support list. Chipset AMD WRX80 Chipset Memory 8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM* 8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM* 8 Channel Memory Architecture * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Expansion Slots AMD Ryzen™ Threadripper™ PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function. Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately. Ethernet 1 x Intel® X550-AT2 dual 10Gb Ethernet Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (suppport USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®) 1 x Wi-Fi Module 2 x Intel® X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header Special Features ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design & Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet Software Features ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X® Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card 3 x Q Latch 7 x M.2 Rubber Packages 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual Operating System Windows® 11 Windows® 10 64-bit Form Factor EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )
