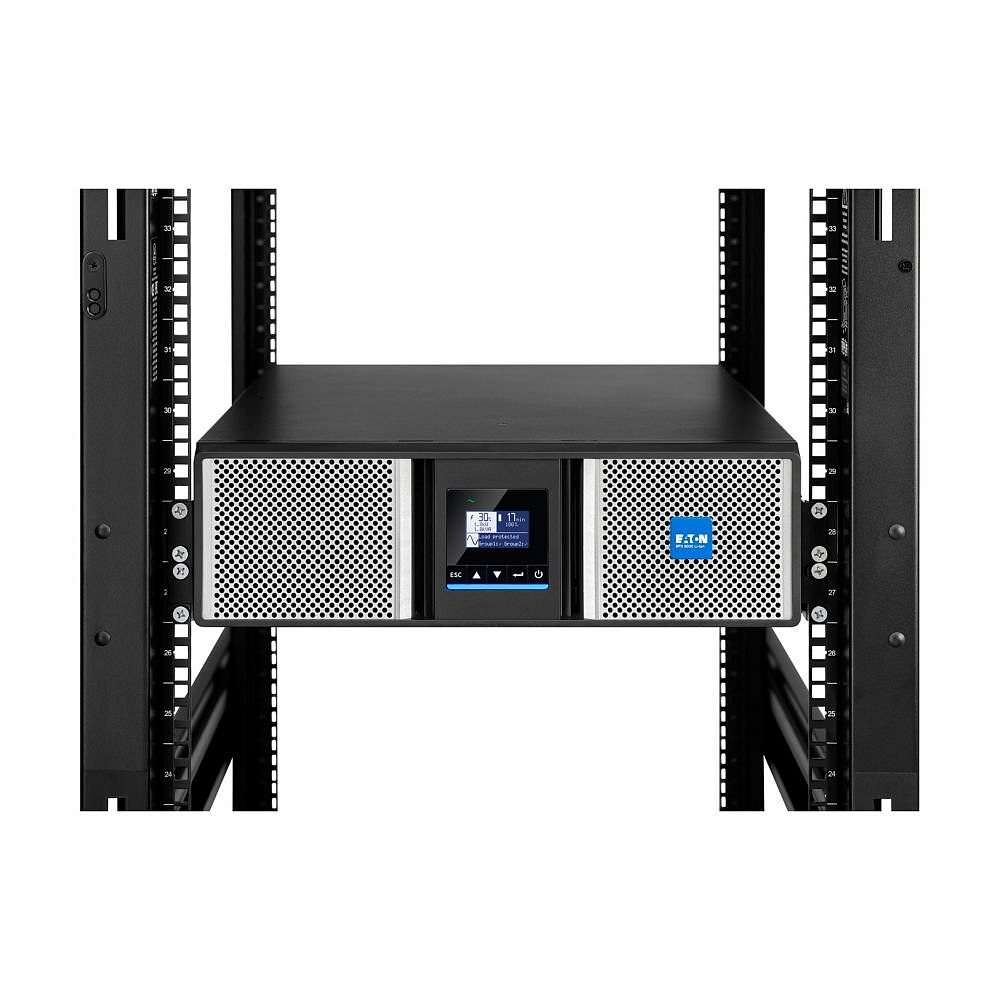

SKU 9PX6KIRTNG2-L Eaton 9PX 6000i RT3U Netpack G2 Li-Ion
Eaton 9PX Gen 2 Lithium UPS Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included
Všeobecná špecifikacia
Product Name Eaton 9PX Gen2 UPS
Catalog Number 9PX6KIRTNG2-L
EAN 3553340710742
Product Length/Depth 684 mm
Product Height 130 mm
Product Width 440 mm
Product Weight 38 kg
Warranty 5 year
Compliances LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM
Model Code Eaton 9PX 6000i RT3U Netpack G2 Li-Ion
Další informace
Auto shutdown function Yes
Color Black/silver
Construction type 482.6 mm (19 inch) device
Efficiency at max. load 96.5
Hot swap power No
Internal bypass Yes
Package contents UPS(2) cable glands(2) IEC-IEC output cables (1,2m)USB cable (1,8m)Network Management CardSupports for tower mountingRack-mounting kit with brackets and slides for UPSSafety instructionsQuickstart guide
Rack mounting kit Yes
Battery specifications
Battery management Advanced BMS (Battery Management System)Automatic recognition of external battery units
Battery rating 6 Ah
Battery type Lithium-ion
Extended battery capability Yes
Runtime graph View runtime graph
Komunikace
Communication USB port (HID compliant)Serial port (RS232)Mini terminal block for remote On/OffMini-terminal block for remote power offMini-terminal block for dry contacts outputs (2 contacts)Network card
Ethernet interface Yes
Expansion slots One slot, network card included
Includes network card Yes
Potential free switch contact Yes
Software compatibility Eaton Brlightlayer Software suite
Type of interface Other
User interface Multilingual graphical LCD display
Elektrický vstup
Input frequency range 40-70 Hz
Input power factor >.99
Input voltage range 176-276 V (100-276 V with derating)
Nominal frequency 50/60 Hz
Elektrický výstup
Feed type 1
Output nominal voltage 230V default (200/208/220/230/240V)
Output power factor 1
Output voltage range 200/208/220/230/240 V +/- 1%
Output waveform Sine wave
Receptacle (6) C13, (6) C39, Hardwired
Topology Online/Double-conversion
VA rating 6000 VA
Voltage 230V
Voltage distortion output (linear load) - max 1
Wattage 6000W
Okolní prostředí
Altitude 3000 m
Noise level <40 dB at 1 meter
Relative humidity 0-95% non-condensing
Temperature range 0° to 40°C (32° to 104°F)
