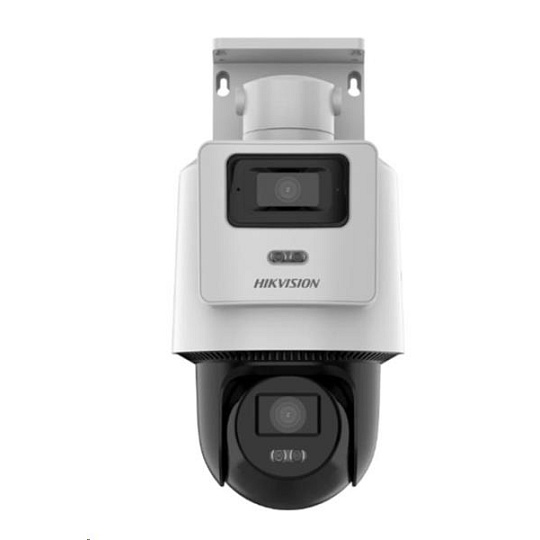

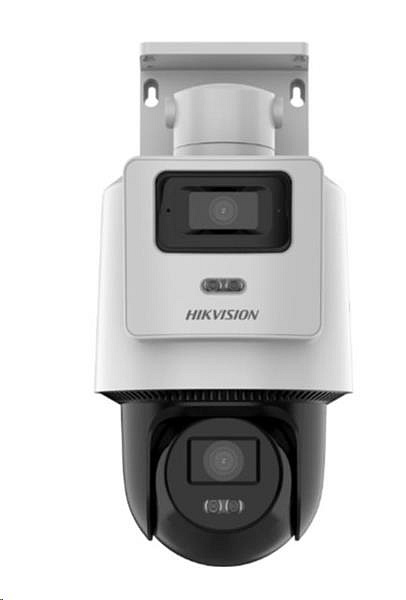

HiLook PTZ-N2D200M-DE/12(2.8/8mm) - PTZ
Kód:
i286_SKHIK-YhlPTZN2D200MDE12288
Záruka:
24 mes.
Popis a parametre
HiLook PTZ-N2D200M-DE/12(2.8/8mm) - PTZ
Camera
Image Sensor
[Bullet channel]
1/2.9 Progressive Scan CMOS
[PTZ channel]
1/2.9 Progressive Scan CMOS"
Min. Illumination
[Bullet channel]
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
[PTZ channel]
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 lux with IR
Shutter Speed
1 s to 1/30,000 s
Slow Shutter
Yes
Day & Night
ICR
Max. Resolution
[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
Lens
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
FOV
[Panoramic channel]
horizontal field of view: 105°, vertical field of view: 58°, diagonal field of view: 123°,
[PTZ channel]
horizontal field of view: 40°, vertical field of view: 22°, diagonal field of view: 46°
Aperture
[Bullet channel] F2.0, [PTZ channel] F2.0
Illuminator
Supplement Light Type
[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
Supplement Light Range
[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
Movement Range (Tilt)
[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
Pan Speed
Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s
Tilt Speed
Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s
Presets
300
Power-off Memory
Yes
Video
Main Stream
[Bullet channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
[Bullet channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Scalable Video Coding (SVC)
Yes
Region of Interest (ROI)
1 fixed region for main stream
Video Compression
Main stream: H.265/H.264/Smart264/Smart265,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 4 Mbps
H.264 Type
Baseline profile,Main profile,High profile
Image Sensor
[Bullet channel]
1/2.9 Progressive Scan CMOS
[PTZ channel]
1/2.9 Progressive Scan CMOS"
Min. Illumination
[Bullet channel]
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
[PTZ channel]
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0, AGC ON), 0 lux with IR
Shutter Speed
1 s to 1/30,000 s
Slow Shutter
Yes
Day & Night
ICR
Max. Resolution
[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
Lens
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
FOV
[Panoramic channel]
horizontal field of view: 105°, vertical field of view: 58°, diagonal field of view: 123°,
[PTZ channel]
horizontal field of view: 40°, vertical field of view: 22°, diagonal field of view: 46°
Aperture
[Bullet channel] F2.0, [PTZ channel] F2.0
Illuminator
Supplement Light Type
[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
Supplement Light Range
[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
Movement Range (Tilt)
[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
Pan Speed
Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s
Tilt Speed
Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s
Presets
300
Power-off Memory
Yes
Video
Main Stream
[Bullet channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
[Bullet channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Scalable Video Coding (SVC)
Yes
Region of Interest (ROI)
1 fixed region for main stream
Video Compression
Main stream: H.265/H.264/Smart264/Smart265,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 4 Mbps
H.264 Type
Baseline profile,Main profile,High profile
HiLook PTZ-N2D200M-DE/12(2.8/8mm) - PTZ
