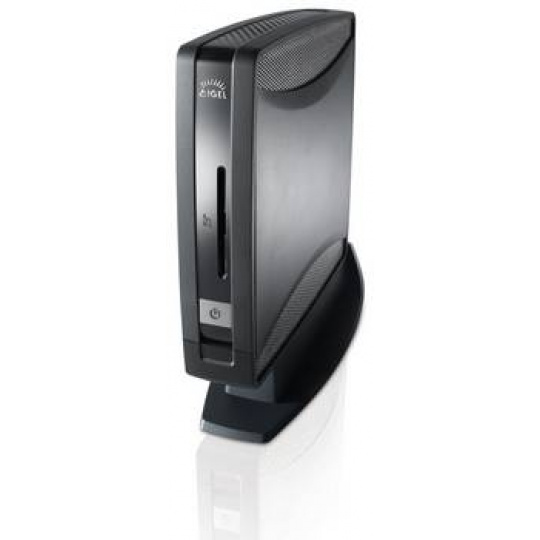

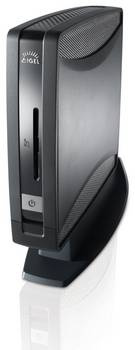

UD3 Series – Specifications System IGEL Linux (LX) Management IGEL Universal Management Suite included Form Factor Standard Processor VIA Nano 1GHz Chipset VIA VX855 Memory RAM 1 GB (LX) Flash Memory 1 GB (LX)) Graphics Chipset VIA Chrome9 Video Memory 64–256 MB shared memory Ports 1x DVI-I (DVI-to-VGA adapter included) Supported Resolutions 1920 x 1200, Dualview Network Ethernet 10/100/1000 Base-T WLAN Optional, via connectivity foot Audio Chipset AC97 compatible Ports 1x line-out, 1x mic-in Speakers 1x internal Peripheral interfaces PS/2 1x keyboard Serial 1x + 1x Optional, via Connectivity foot USB 2.0 1x front, 4x back; optional: anti-theft USB (via connectivity foot) Dimensions Device (DxWxH), upright 227 x 82 x 231 mm Packaging (DxWxH), horizontal 323 x 112 x 276 mm Weight 1.44 kg Environment Cooling Fanless convection Operating Temperature Vertical: 0 to 40 °C Horizontal: 0 to 35 °C (optional) Operating Humidity 10% – 80%, non-condensing Power Input Auto sensing 100~240 VAC / 50~60 Hz Power Supply External Power Consumption: Idle / Sleep Mode 11W / 1W Options: VESA Mount - For mounting on the back of a monitor Rubber Feet For horizontal placement of the device Connectivity foot serial port and anti-theft USB port serial port and 802.11b/g WLAN Built-in smartcard reader For secure smartcard-based authentication Dualview Y-Cable For DVI-I to DVI-D + VGA. Connect two monitors USB-to-Serial Adapter For connecting peripherals that require a serial port USB-to-Parallel Adapter For connecting printers that require a parallel port Shared WorkPlace It allows user-dependent configuration based on setting profiles
