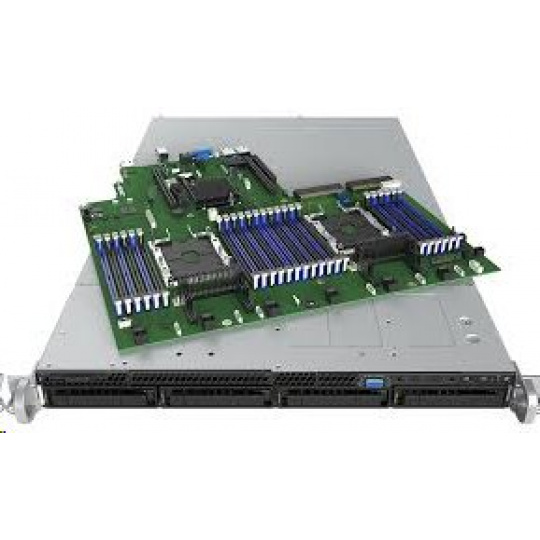

Popis produktu: Essentials Product Collection Intel® Server System R2000WF Family Code Name Products formerly Wolf Pass Launch Date Q3'17 Status Announced Expected Discontinuance 2H'20 Limited 3-year Warranty Yes Extended Warranty Available for Purchase (Select Countries) Yes Additional Extended Warranty Details Dual Processor System Extended Warranty Compatible Product Series Intel® Xeon® Scalable Processors Chassis Form Factor 2U Rack Chassis Dimensions 16.93" x 27.95" x 3.44" Board Form Factor Custom 16.7" x 17" Rack Rails Included No Socket Socket P System Board Intel® Server Board S2600WFT Board Chipset Intel® C624 Chipset Target Market Cloud/Datacenter Rack-Friendly Board Yes Power Supply 1300 W Power Supply Type AC # of Power Supply Included 1 Redundant Fans Yes Redundant Power Supported Supported, requires additional power supply Heat Sink (2) FXXCA78X108HS Heat Sink Included Yes Backplanes Included Included Items (1)Intel® Server Board S2600WFT (Dual 10GbE LAN) (2)PCIe Riser card brackets Includes (2)3-slot PCIe* riser cards A2UL8RISER2 (1)2-slot low profile PCIe* riser card A2UX8X4RISER (1)3.5” Hot-swap drive bays with drive carriers and drive blanks Includes (1)12Gb SAS backplane A2U8X35S3HSDK1 (8)3.5” hot swap drive tool less carriers FXX35HSCAR2 (1)Standard control panel assembly FXXFPANEL2 (1)Front I/O Panel assembly (1 x VGA and 2 x USB) (1)175mm Backplane I2C Cable (1)730mm Mini SAS HD Cable AXXCBL730HDHD (1)875mm Mini SAS HD Cable AXXCBL875HDHD (1)400mm Backplane power cable (1)Standard 2U Air duct (6)Hot swap system fans FR2UFAN60HSW (8)DIMM slot blanks (1)1300W AC Power Supply Module AXX1300TCRPS (1)Power supply bay blank insert (2)AC Power Cord retention strap assembly (2)CPU heat sinks FXXCA78X108HS (2)CPU heat sink “NO CPU” label insert (2)Standard CPU Carrier (2)Chassis handle (1 set) A2UHANDLKIT3 (1)3x RMFBU Mounting Bracket (1)250mm Fixed Mount SSD Power Cable # of Front Drives Supported 8 Front Drive Form Factor Hot-swap 2.5" # of Internal Drives Supported 4 Internal Drive Form Factor M.2 and 2.5" Drive Recommended Customer Price N/A Supplemental Information Description Intel® Server System R2308WFTZS is an Integrated 2U system featuring an Intel® Server Board S2600WFT supporting eight 3.5 inch hot-swap drives, dual 10-GbE LAN, 24 DIMMs, one 1300W redundant-capable power. Additional Information URL View now Memory Specifications Memory Types Registered/Load Reduced DDR4-2133/2400/2666 MHz Max # of DIMMs 24 Expansion Options PCIe x24 Riser Super slot 2 Connector for Intel® Integrated RAID Module 1 Riser Slot 1: Total # of Lanes 24 Riser Slot 1: Included Slot Configuration(s) 3x PCIe Gen3 x8 Riser Slot 2: Total # of Lanes 24 Riser Slot 2: Included Slot Configuration(s) 3x PCIe Gen3 x8 Riser Slot 3: Total # of Lanes 12 I/O Specifications # of USB Ports 5 Total # of SATA Ports 12 RAID Configuration SW RAID 0, 1, 10, optional 5 # of Serial Ports 2 Integrated LAN 2x 10GbE # of LAN Ports 2 Optical Drive Support No Package Specifications Max CPU Configuration 2 Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Remote Management Module Support Yes Integrated BMC with IPMI IPMI 2.0 with OEM extensions Intel® Node Manager Yes Intel® On-Demand Redundant Power Yes Intel® Advanced Management Technology Yes Intel® Server Customization Technology Yes Intel® Build Assurance Technology Yes Intel® Efficient Power Technology Yes Intel® Quiet Thermal Technology Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® Rapid Storage Technology enterprise Yes Intel® Quiet System Technology Yes Intel® Fast Memory Access Yes Intel® Flex Memory Access Yes Intel® Transparent Supply Chain
