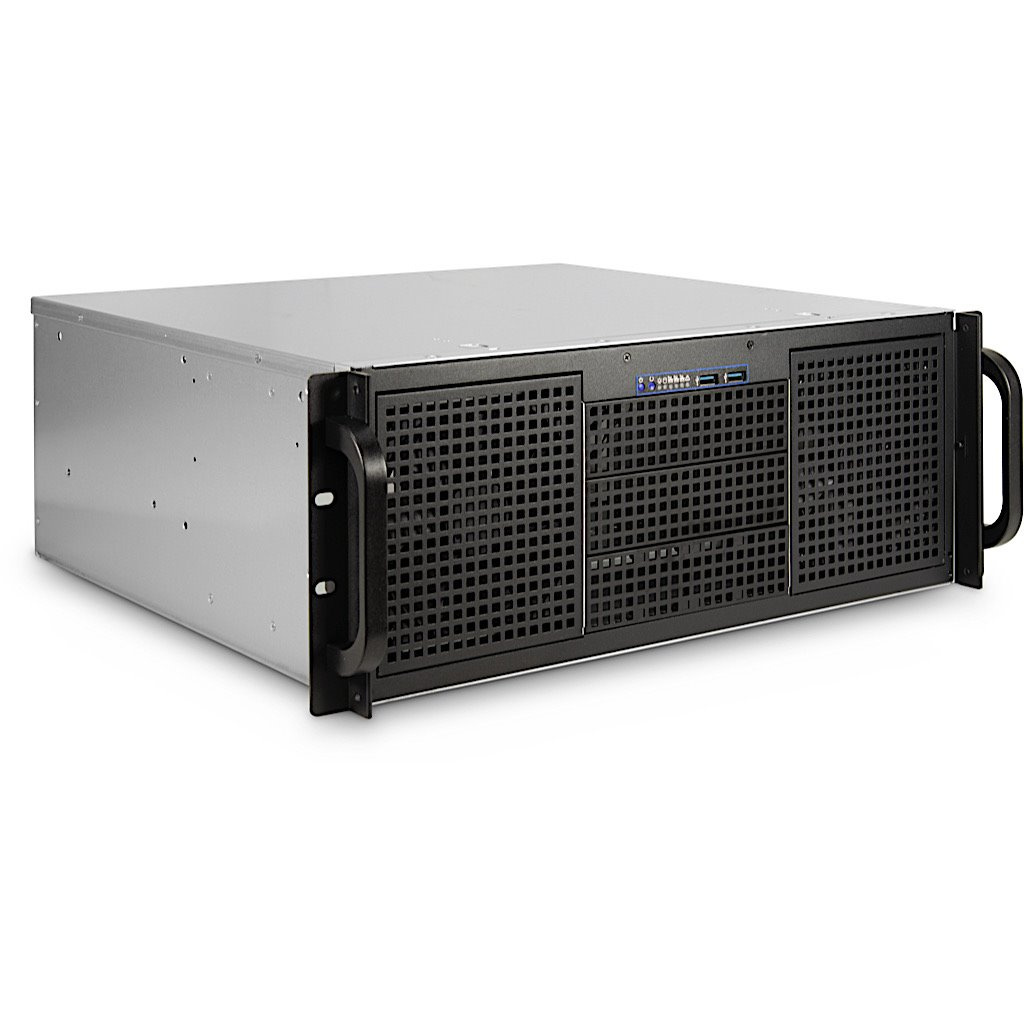

MOTHERBOARD Form factor Mini ITX, mATX, µATX˛, ATX˛ max. Motherboard size 305mm x 208mm (12" x 7.5") ˛ maximal 208mm mounting depth INSTALLATION DIMENSIONS Height CPU cooler (max.) 150mm Length graphics card (max.) 208mm DRIVE BAYS 5.25" external 3xą 3.5" external 3.5" internal 11xą 2.5" internal 4xą ą can vary by using several mounting options FRONT CONNECTORS USB 3.0 2x USB 2.0 POWER SUPPLY ATX PSU FAN MOUNTING OPTION Front 2x 120mm (serial, Molex connector) and 6x 40mm (optional, behind the 5.25"brackets) Rear 2x 80mm (serial, 3pin connector) CONTROLS & LED Controls Power-Switch Reset-Button LED Power HDD Activity 3x Network Activity Alert OTHER DATA Dimensions (h/w/d) 177.8 x 485 x 445mm Material 1.0-1.2mm Steel Warranty 24 months SCOPE OF DELIVERY & FEATURES Scope of delivery Case Retail packaging Screw Set Mounting rails for 3.5" hard drives Features 7 slot openings 2x 120mm and 2x 80mm fan included Up to 6x 40mm fan optional mountable Lid with snap lock LOGISTICAL DATA Shipping Unit 1 Pcs EU palett 21 Pcs Weight net = 9.79kgs gross = 11.96kgs Item number 88887305 EAN-Code 4260455645942
