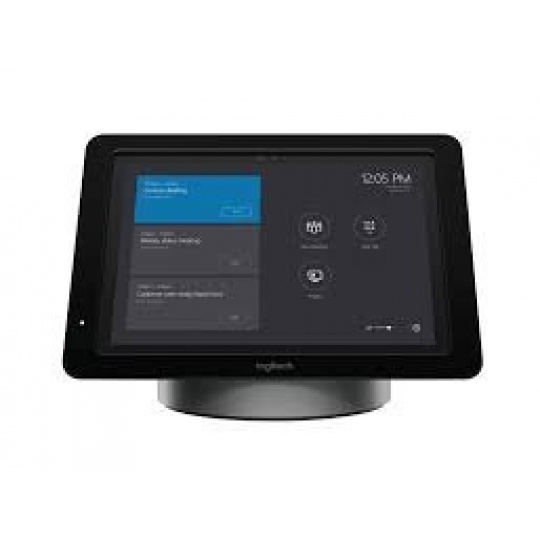

Stojanček - konzola pre systém Skype Room System, zabezpečená, 3x HDMI, 3x USB 3.0, 1xRJ45, 1x3.5mm jack, senzor pohybu s dosahom 3 metre
Dimensions
SmartDock
Height x Width x Depth: 9.4 in x 13.2 in x 8.2 in (239 mm x 334 mm x 209 mm)
Extender Box
Height x Width x Depth: 1.3 in x 5.0 in x 5.0 in (34 mm x 128 mm x 128 mm )
Cable Length
HDMI: 9.8 ft / 3m
Network: 9.8 ft / 3m
Power: 9.8 ft / 3m
Extender Box: 16.4 ft / 5m
System Requirements
Microsoft® Surface Pro 4 with:
• Intel® Core i5 (required), Core i7 and Core M3 variants are not supported
• Windows® 10 Enterprise (not included with Microsoft Surface Pro 4)
• Microsoft Skype™ Room System Software

Room resource account for Skype for Business 2015 or later.
• Accounts can be on either On-premises Server or Online (Office 365)

Internet access via Ethernet with DHCP enabled

External Display or Projector with HDMI input

Logitech ConferenceCam (recommended) or other Skype Certified A/V Devices

100-240v AC Power
Technical Specifications
Logitech SmartDock:

Integrated Surface Connector
Two HDMI* output supporting up to 1080p60
One HDMI input supporting content sharing up to 1920x1200 and 60fps
One Gigabit Ethernet (RJ45) port
Three USB 3.1 ports
One 3.5mm headset audio jack
Motion sensor / presence detection with 3 meter range
Kensington security slot
Power
Logitech SmartDock Extender Box:

5-in-1 cable including Dual HDMI*, Network, USB and Power
Two amplified HDMI* outputs supporting up to 1080p60
One gigabit ethernet (RJ45) port
Two USB 3.1 ports
Integrated Logitech GROUP Hub with DIN ports for GROUP Camera and Speakerphone
Kensington security slot
*Dual display when supported by Skype

Package Contents
Logitech SmartDock:
SmartDock
Two HDMI cables (3m / 9.8ft)
One network cable (3m / 9.8ft)
Power supply (100-240volt)
Assembly tools
Documentation

Logitech SmartDock Extender Box:
SmartDock Extender Box
5m /16ft extender cable
VESA mounting plate 100x100mm
Hook and loop pads
Documentation

Logitech SmartDock + Extender Box:
All components included with Logitech SmartDock and Logitech SmartDock Extender Box.
Warranty Information
2-Year Limited Hardwar
