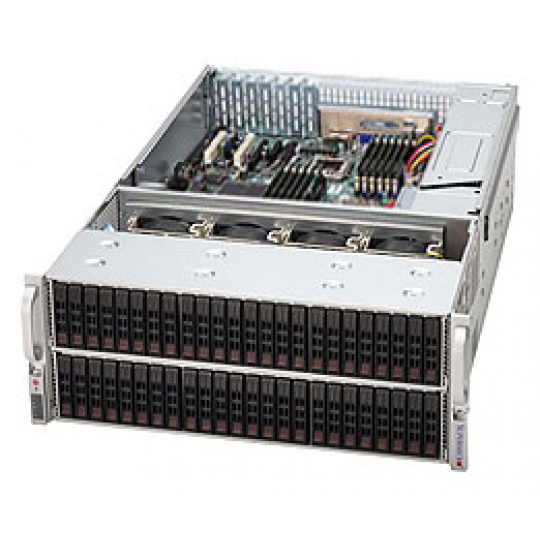

Key Features • High-Availability • Extremely High Storage Capacity 1. Extra High-Density 4U Storage Chassis 2. High-Availability Features: Redundant, Hot-pluggable cooling system, Power Supplies, Hot-swap drives 3. Redundant (1+1) 1400W Gold Level power supply with PMBus function 4. 72x (48 front + 24 rear) 2.5" HDD bays E26: Dual Expander chips support SAS2 (6Gb/s) 5. 7x Low-profile expansion slots 6. 7x 8cm (middle) Hot-swap cooling fans, redundant cooling Product SKUs CSE-417E26-R1400LPB SuperChassis 417E26-R1400LPB (Black) Form Factor 4U chassis support for motherboards up to size ATX, E-ATX, 13.68" x 13" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 7" (178mm) Width 17.2" (437mm) Depth 27.5" (699mm) Gross Weight 80 lbs (36.3 kg) Available Colors Black Expansion Slots 7x Low-profile expansion slots Drive Bays Server Chassis 72x (48 front + 24 rear) 2.5" Hot-swap HDD bays SAS or enterprise SATA HDD only recommended Backplane HDD Backplane supports 72 SAS hard drives (48 front + 24 rear) E26: Dual Expander chips support SAS2 (6Gb/s) Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED System Cooling Fans 7x 8cm hot-swap cooling fans Redundant cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 1400W high-efficiency (1+1) redundant power supply with PMBus AC Input 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz DC Output 1100W: +12V/92A; +5Vsb/4A 1400W: +12V/116A; +5Vsb/4A With Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification 80 PLUS Gold Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant Standard Parts List Part Number Qty Description Chassis CSE-417E26-R1400LPB 1 4U Chassis (Black) - 417E26-R1400LPB Backplane BPN-SAS2-216EL2 3 BPN-SAS2-216EL2 Power Supply PWS-1K41P-1R 2 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3 Power Distributor PDB-PT416-8824 1 SC416 24PIN OUTPUT PDB SUPPORT X8 Air Shroud MCP-310-49004-0N 1 SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB Cable 1 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30 Cable 2 CBL-0088L 7 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) Cable 3 CBL-0160L 2 US power cord 16AWG 6ft, PBF (default for high watt) Cable 4 CBL-0217L 1 16pin control panel converter cable for SC826,846, 22cm, PBF Fan 1 FAN-0126L4 7 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846 Drive Tray(s) MCP-220-00047-0B 72 Black gen 3rd hot-swap 2.5inch HDD tray Mounting Rails MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"W Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216 Cooling Fan(s) FAN-0099L4 7 80X38MM 4PIN PWM FAN W/HUS FOR SC828, PBF
