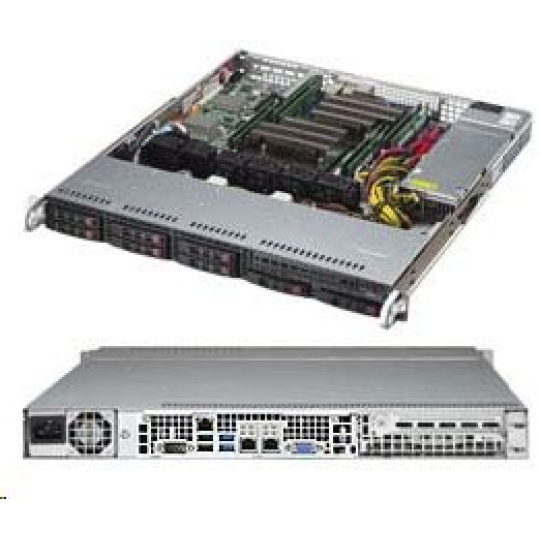

Key Features ?1U Chassis for motherboard support size: ATX 12" x 10" 8 x 2.5" hot-swap SAS/SATA drive bay 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U 600W platinum efficiency multiple output power supply w/pmbus 1 full height expansion slot(s) 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling Product SKUs CSE-113MFAC2-605CB SuperChassis 113MFAC2-605CB Form Factor ?1U Chassis for motherboard support size: ATX 12" x 10" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Gross Weight 29.5 lbs (13.38 kg) Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay Backplane 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Peripheral Drives Optional 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Motherboard (for CSE- 113MFAC2-605CB) X10SRH-CF X10SRH-CLN4F X10DRL-CT X10DRL-iT X10DRL-C X11SSL-CF X11SSL-nF X10SRM-TF X10SRM-F X11DPL-i X11SSH-GTF-1585 X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L Servers (for CSE- 113MFAC2-605CB) 1028R-MCT 1029P-MT Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 600W platinum efficiency multiple output power supply w/pmbus Power Efficiency 92% Total Output Power and Input 600W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 279.4 x 76 x 40.4 mm Output Type 24pin ATX -12V Max: 0.5A / Min: 0A +12V Max: 49A / Min: 0.5A (100Vac - 240Vac) +5V Max: 18A / Min: 0.5A +3.3V Max: 15A / Min: 0.5A +5Vsb Max: 3A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Cable(S) CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) Cable(S) CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD) Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory PWS-605P-1H 1 1U 600W Multi Output Power Supply PMbus Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6 Mounting Rail(s) MCP-290-00107-0N 1set Inner rail, front, short, screw type Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2 Rear Window MCP-240-00085-0N 1 STD rear window for SC113 single PWS
