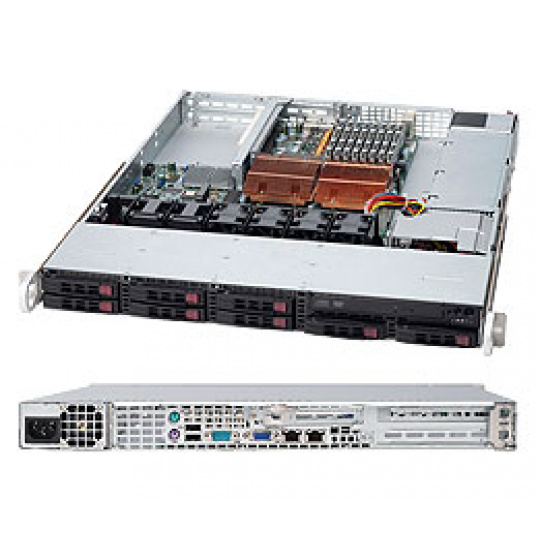

Key Features 1. 700W Redundant Power Supplies 80 PLUS, Gold Level Certified 2. 8x 2.5" Hot-swap SAS / SATA Drive Bays 3. 1x Slim DVD-ROM Drive (optional) 4. 4x 4cm Counter-rotating PWM fans 5. 2x Full-height I/O Expansion slots & 1x Low-profile I/O Expansion slot 5. Supports motherboard sizes 12" x 13" E-ATX & 13.68" x 13" 6. Optimized for WIO motherboards Product SKUs (*OEM Only) CSE-113TQ-R700WB SuperChassis 113TQ-R700WB (Black) Form Factor • 1U chassis support for max. motherboard size - 12" x 13" E-ATX • Optimized for WIO (W series) motherboards Processor Support Supports dual Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 23.5" (597mm) Packaging 25" (W) x 6" (H) x 33" (L) Gross Weight 37 lbs (16.8 kg) Available Color Black Expansion Slots 2x Full-height Expansion Slots (Riser Card Required) 1x Low-profile Expansion Slot (Riser Card Required) Drive Bays Hot-swap 8x Hot-swap 2.5" SAS / SATA HDD tray SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane with SES2 Peripheral Drives DVD-ROM Slim DVD-ROM drive Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED 2x Network activity LEDs Universal Information LED System Cooling Fans 4x 40x56mm Counter-rotating PWM fans Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C AC Voltage 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp DC Output +5V standby 3 Amp DC Output +12V 700W: 58 Amp @ 100-140V 750W: 62 Amp @ 180-240V With Power Distributor +5V: 25 Amp +3.3V: 12 Amp -12V: 0.6 Amp Certification Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed CCC Certification EN 60950/IEC 60950-Compliant Europe/CE Mark Germany - TUV Certified
