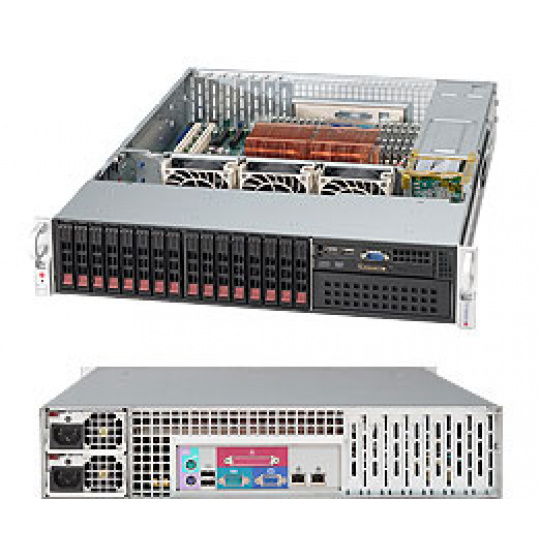

Key Features 1. 740W Redundant Power Supplies 80 PLUS, Platinum Level (94%) 2. 16x 2.5" Hot-swap SAS/SATA HD Bays 3. 1x Slim DVD-ROM Drive (optional) 2x USB + 1x COM port (optional) 4. 3x 80mm 7k RPM PWM fans 5. Mini-I-pass Connectivity 6. Adjustable Air Shroud 7. Power Switch & 6x LED Indicators Form Factor 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 3.5" (89mm) Width 17.2" (437mm) Depth 24.8" (630mm) Gross Weight 53 lbs (24kg) Available Colors Black Expansion Slots • 7x low-profile expansion slots Drive Bays Hot-swap 24x 2.5" SAS / SATA Hot-swap drive trays Recommended for SAS or enterprise SATA HDD only Backplane 2U Direct Attached Backplane, features: • 3Gb/6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • Six SFF 8087 connectors Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED System Cooling Fans 3x 80mm 6300 RPM PWM fans System Monitoring Chassis intrusion switch Product SKUs CSE-213A-R740LPB SuperChassis 213A-R740LPB (black) Form Factor 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 24.8" (630mm) Packaging 26.5" (W) x 10.5" (H) x 38" (L) Weight Gross: 50 lbs (22.7kg) / Net: 46 lbs (20.9kg) Available Color Black Expansion Slots • 7x low-profile expansion slots Drive Bays Hot-swap 16x 2.5" SAS / SATA Hot-swap drive bays SAS or enterprise SATA HDD only recommended Peripheral Bay 1x 5.25" peripheral Drive Bay 1x Slim Optical Drive Bay 1x USB/COM Port Bay Backplane 2U Direct Attached Backplane, features: • 3Gb/6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • Four SFF 8087 connectors Peripheral Drives DVD-ROM 1x Slim DVD-ROM Drive, 2x USB + 1x COM port (option) Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED System Cooling Fans 3x 80mm 7,000 RPM 4-pin PWM fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 740W (1+1) Redundant high-efficiency power supply with PMBus AC Input 100-240 V, 50-60 Hz, 9-3.5 Amp DC Output 4 Amp @ +5V standby 61.7 Amp @ +12V With Power Distributor +5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification 80 PLUS Platinum [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
