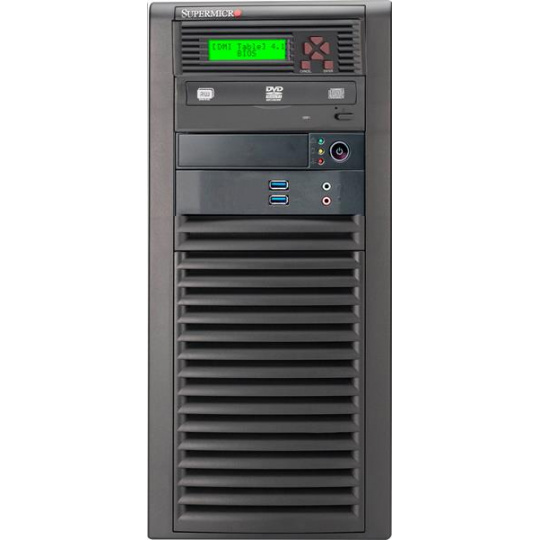

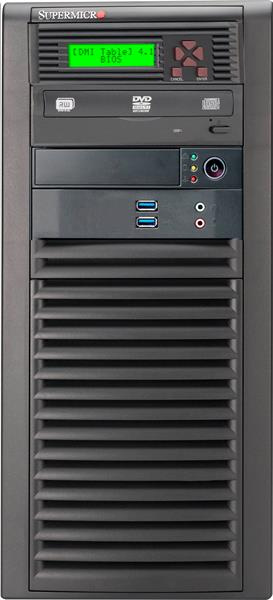

Key Features 1. Versatile front I/O access (2x USB3.0 & audio ports). 2. Tool-less side panel; tool-less 5.25inch (DVD), 3.5inch (card reader) device & add-on-card installation. 3. 90-degree rotatable HDD cage design; One push HDD installation and folded ddge design for safe installation. 4. Optional 4x internal 2.5inch HDD cage and all-In-One card reader available . Product SKUs CSE-732D3-903B SuperChassis 732D3-903B (Black) Form Factor Mid-Tower chassis for motherboard support size of ATX 12" x 9.6", ATX 12" x 10", E. ATX 12" x 13", Micro ATX 9.6" x 9.6", Processor Support Dual, single Intel® / AMD processors Dimensions Height 16.7" (424mm) Width 7.6" (193mm) Depth 20.68" (525mm) Packaging 11.97'' (W) x 21.38''(H) 25.28'' (L) Gross Weight 30 lb (13.61 kg) Available Colors Black Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays Internal • 4 x 3.5" fixed drive bay • SAS or enterprise SATA HDD only recommended Peripheral Bay • 1 card reader module • 2 standard 5.25" drive bay Front Panel Buttons • Power On/Off button LEDs • 1 Network Activity LEDs • HDD activity LED • System Information LED Motherboard(s) for CSE-732D3-903B X10SRA-F Server(s) for SC732D3-903B 5038A-I System Cooling Fans •1x 12cm rear exhaust fan Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 900W AC multi output power supply AC Voltage 100-240 V, 50-60 Hz, 10-6 Amp +5V Standby 3 Amp +12V1 25 Amp +12V2 25 Amp +12V3 25 Amp +12V4 25 Amp +5V 25 Amp +3.3V 25 Amp -12V 0.5 Amp Certification Gold Level Gold Level Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant See Parts List Standard Parts List Part Number Qty Description Chassis CSE-732D3-903B 1 Mid-Tower Chassis (Black) Power Supply PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold Cable(s) CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG Cable(s) CBL-0084L 1 Front control cable 16 pin split, 6 Cable(s) CBL-0453L 1 USB 3.0 Internal Cable-60 cm(19 pin Female to 19pin Female) Cable(s) CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) Cable(s) CBL-0455L 1 HD to AC97 Audio Cable-60cm Fan(s) FAN-0124L4 1 12 CM x12 CM fan Drive Tray MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray Mounting Rail MCP-290-73102-0N 1 SC731 Card Reader Rail Optional Parts List Part Number Qty Description Adapter Cable CBL-0454L -- USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female) LCD Kit MCP-220-00095-0B -- 5.25" USB LCD Kit HDD Cage MCP-220-73201-0N -- HDD Cage (4x Internal 2.5" fixed HDD bays) Fan Kit FAN-0124L4 -- 12cm (1850rpm) cooling Fan
