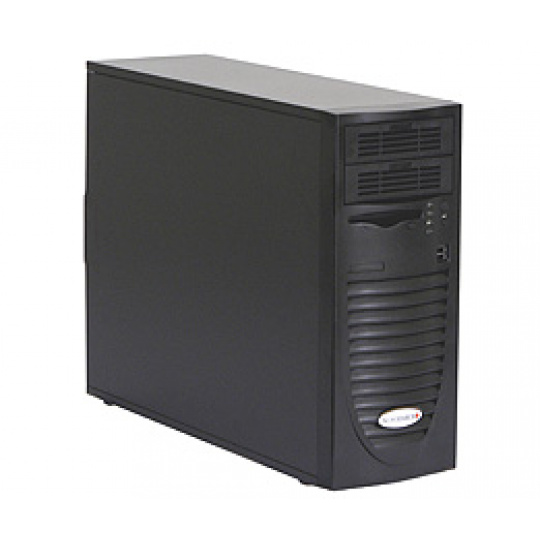

Key Features 1. 500W High-efficiency Low Noise Power Supply 2. 4 x 3.5" Fixed Drive Bays 3. 2 x 5.25" Drive Bays 4. 1 x 92mm Front Thermal Fan 5. 7x Full-height, Full-length Expansion Slots 6. 2x USB Front Access I/O 7. Power Switch & 4 LED Indicators 8. Locking Side Panel 9. Support High-end Graphics Cards Product SKUs (*OEM Only) CSE-733i-500B SuperChassis 733i-500B (Black) Form Factor Mid-Tower & Workstation chassis support for max. motherboard size - 12" x 13" E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 16.8" (427 mm) Width 7" (178 mm) Depth 20.9" (531 mm) Weight 39 lbs (17.7 kg) Available Colors Black Expansion Slots 7x Full-height, Full-length I/O expansion slots Drive Bays Internal 4x Fixed Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay 2x 5.25" peripheral drive bay Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED Network activity LED System Overheat LED Ports 2x Front side USB ports (USB 2.0 ready) System Cooling Fans 1x 92mm Front Thermal Fan Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 500W AC power supply w/ PFC AC Voltage 100 - 240V, 50-60Hz, 7-3.5 Amp +5V 20 Amp +5V standby 3 Amp +12V1 17 Amp +12V2 17 Amp +12V3 17 Amp +12V4 18 Amp -12V 0.5 Amp +3.3V 15 Amp Certification 80 PLUS Bronze Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC Certified Standard Parts List Part Number Qty Description Chassis CSE-733i-500B 1 SC733i-500 Black Mid Tower Chassis Cable(s) CBL-0049L CBL-0084 1 1 Front Panel Cable 6" 16-pin Front Control Split Cable Fan(s) FAN-0076L4 1 92x25mm 4-pin PWM Fan Power Supply PWS-502-PQ 1 500W PS2 ATX high-efficiency Power Supply Optional Parts List
