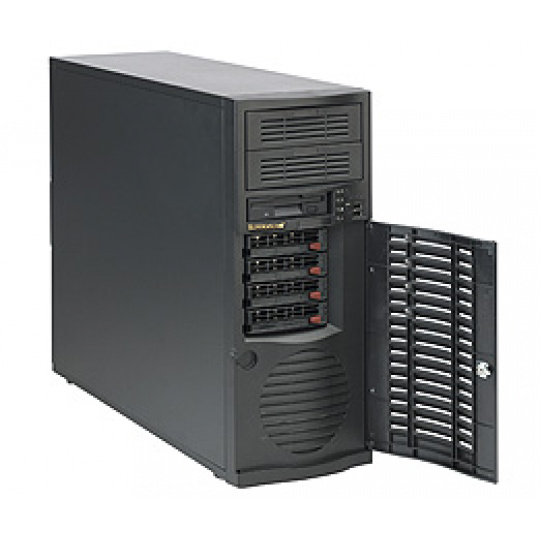

Key Features 1. 665W Super Quiet (25dB), 80 PLUS® (Bronze Level) High-efficiency PS 2. 4x 3.5" SAS / SATA hot-swap drive bays (with SES2 Support) 3. Support high end graphics cards 4. 1x 9cm PWM Cooling fan 5. 1x 12cm PWM Exhaust fan 6. 7x I/O expansion slots 7. 2x Front USB 2.0 ports 8. Power switch and 4 LED indicators 9. Locking Bezel and Locking Side Panel 10. Full SES2 support is available with SAS motherboards and other compatible components. Product SKUs CSE-733TQ-665B SuperChassis 733TQ-665B (Black) Form Factor Mid-Tower & Workstation chassis support for max. motherboard size - 12" x 13" E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 16.8" (427 mm) Width 7" (178 mm) Depth 20.9" (531 mm) Weight 40 lbs (18.2 kg) Available Colors Black Expansion Slots Supports 7x Full-height, full-length I/O expansion slots Drive Bays Hot-swap 4x 3.5" SAS / SATA hot-swap drive bays SAS or enterprise SATA HDD only recommended Peripheral Bay 2x 5.25" peripheral drive bay 1x 3.5" bay SATA / SAS Backplane 4 x 3.5" SATA / SAS Backplane with SES2 Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED Network activity LED System Overheat LED Ports 2x Front side USB ports (USB 2.0 ready) System Cooling Fans 1x 12cm PWM rear exhaust fan 1x 9cm PWM fan Operating Environment (System) Operating Temperature Range 10° - 35°C (50° - 95°F) Non-Operating Temperature Range -40° - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 665W AC-DC power supply AC Input 100 - 240V, 50-60Hz, 10-5 Amp +5V 30 Amp +5V standby 6 Amp +12V 54 Amp -12V 0.5 Amp +3.3V 24 Amp Certification 80 PLUS Bronze Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant CCC Standard Parts List Part Number Qty Description Chassis CSE-733TQ-665B 1 Mid tower chassis (Black) Backplane CSE-SAS-733TQ 1 4x 1" SAS backplane w/SES-II Cable(s) CBL-0049L CBL-0084 1 1 Front control cable 16 pin to 16 pin Front control cable 16-pin split convertor Fan(s) FAN-0076L4 FAN-0077L4 1 1 92x25mm 4-pin PWM fan 120X38mm 4-pin PWM fan Peripheral Drive(s) CSE-PT36-BOEM 1 Black 5.25" dummy tray Power Supply PWS-665-PQ 1 665W PS2 power supply with 8cm fan Hot-swap drive tray CSE-PT39-B0 4 Drive tray for SC733 & SC813 (Black) Optional Parts List
