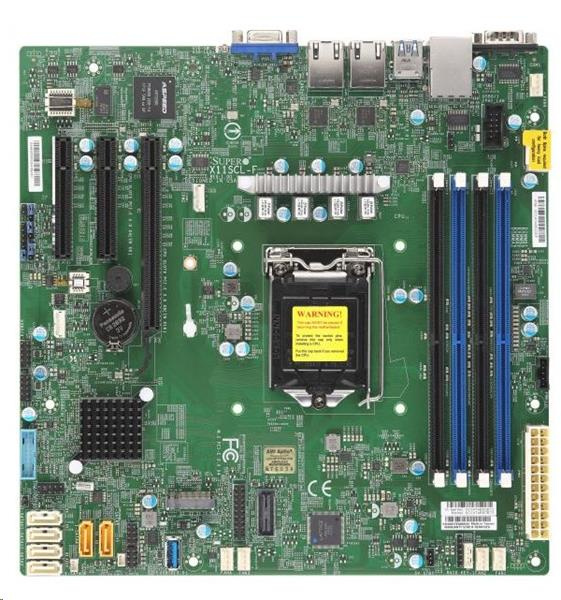

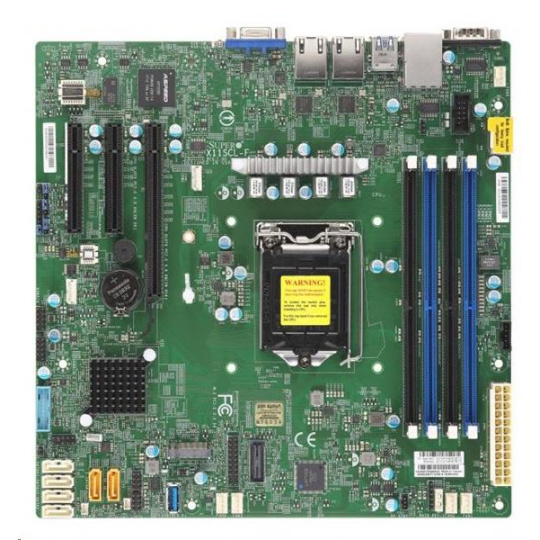

Key Features 8th/9th Generation Intel® Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP Intel® C242 chipset Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots Expansion slots: 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8) Dual GbE LAN with Intel® i210-AT 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 M.2 NGFF connector M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header Product SKUs MBD-X11SCL-F X11SCL-F Physical Stats Form Factor microATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series. Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP Cores / Cache 6 cores, 12 threads System Memory Memory Capacity Up to 128GB Unbuffered ECC UDIMM, in 4 DIMM slots Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors *Future support for 128GB via a BIOS update expected in early 2019 On-Board Devices Chipset Intel® C242 SATA Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 1GbE with Intel® I210 Graphics Aspeed AST2500 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers, 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 2 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key Double Height Connector System BIOS BIOS Type UEFI 256Mb BIOS Features ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 Management Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5 Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, UID/Remote UID Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing
