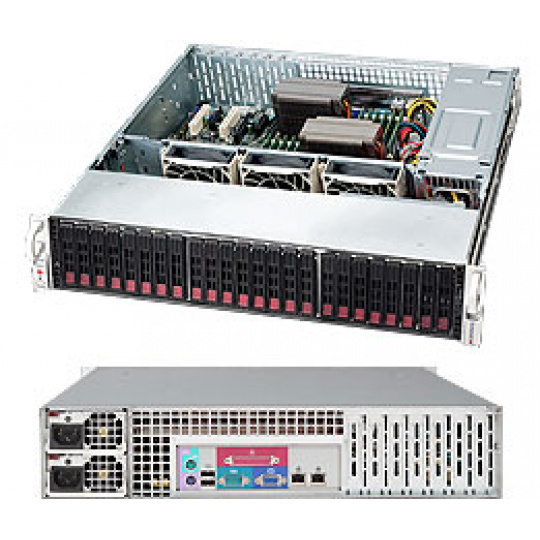

Key Features 1. 920W Redundant High-efficiency Platinum Level Power Supply 2. 2U High Density 2.5" HDD Chassis 24x 2.5" Hot-swap SAS/SATA HD bays 3. 6Gb/s SAS2 Expander 4. Mini-I-pass (SFF 8087) Connectivity for clean cable routing 5. 7x Low-profile Expansion Slot 6. Optional rear hot-plug 2x 2.5" HDD drive bays Product SKUs CSE-216BE16-R920LPB SuperChassis 216BE16-R920LPB (Black) Form Factor 2U chassis support for motherboard size - 13.68" x 13", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 24.8" (630mm) Packaging 26.5" (W) x 10.5" (H) x 38" (L) Weight Net Weight: 35 lbs (15.9kg) Gross Weight: 57 lbs (25.9kg) Available Color Black Expansion Slots • 7x low-profile expansion slots Drive Bays Hot-swap 24x 2.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended Backplane SAS2 Expander Backplane, features: • Scalability through cascading • 6Gb SAS2/SATA3 HDD support • Inband SES-2 Enclosure Management • Single input/output SFF 8087 connectors Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED System Cooling Fans 3x 80mm 7000 RPM hot-swap PWM fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 920W high-efficiency AC-DC Redundant power supplies with PMBus and I2C AC Input 100-240 V, 50-60 Hz, 11-4.5 Amp DC Output 4 Amp @ +5V standby 75 Amp @ +12V With Power Distributor +5V: 45 Amp +3.3V: 24 Amp -12V: 0.6 Amp Certification Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
