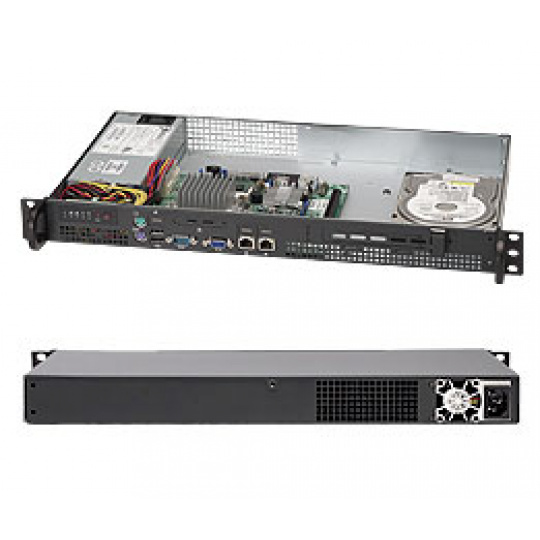

Key Features 1. Mini 1U Chassis optimized for Intel® Atom™ Platform 2. 200W Low Noise Power Supply 3. Front I/O Ports 4. 1x 3.5" Internal Drive Bay 5. OR 2x 2.5" Internal Drive Bay (opt.) 6. OR 1x Full-height, Half-length PCI (opt.) 7. OR 1x 2.5" Internal Drive & 1x FH, HL PCI 8. Power Switch, Reset Button & 5 LED Indicators Available Colors Black Downloads Chassis Manual Product SKUs CSE-503L-200B SuperChassis 503L-200B (Black) Form Factor 9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6" Processor Support Single Processor Support: Intel® Atom™ series processor, Celeron® 400 series up to 35W Dimensions Height 1.7" (43mm) Width 17.2" (437mm) <<< Release form has 17.3" Depth 9.8" (249mm) Packaging 25.8" (W) x 6.1" (H) x 18.3" (L) Gross Weight 10 lbs (4.5kg) Available Colors Black Expansion Slots • 1x full-height half-length PCI expansion slot (Optional) Riser Card Required Drive Bays Internal Bay 1x 3.5" Internal Drive Bay (Standard) OR 2x 2.5" Internal Drive (Optional) OR 1x 2.5" (Optional) SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED I/O Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) Operating Environment (System) Operating Temperature Range 10 - 35°C (50° - 95°F) Non-Operating Temperature Range -40 - 70°C (-40° - 158°F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage 100 - 240V, 50-60Hz, 3-1.5 Amp Max +5V 16.0 Amp +5V standby 2.0 Amp +12V 15.0 Amp -12V 0.8 Amp +3.3V 17.0 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed CCC Certification EN 60950/IEC 60950-Compliant Europe/CE Mark Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-503L-200B 1 1U Chassis (Black) Cable(s) CBL-0260L CBL-0235L 1 1 US power cord 18AWG 6ft, PBF (default for low watt) 77.5cm, 16-pin to 16-pin Front Cable Front Panel MCP-280-81301-0N 1 Front Panel Control Board Power Supply PWS-202-1H 1 200W Low Noise Power Supply Optional Parts List Part Number Qty Description Cable(s) CBL-0080L - 1x 4-pin to 1x SATA Power Cable Hard Drive Bracket MCP-220-00051-0N MCP-220-00044-0N - - Retention Bracket for 1 x 2.5" HDD Retention Bracket for up to 2x 2.5" HDD Heatsink / Retention SNK-P0032A4 - 1U Active Heatsink for SC502/503 with Celeron processor platform
