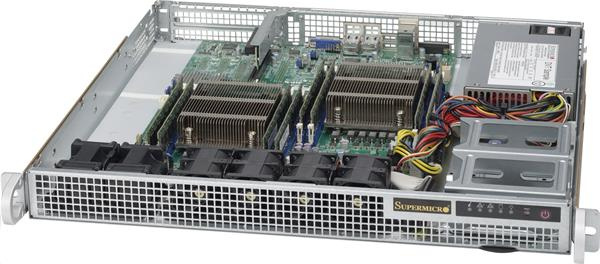

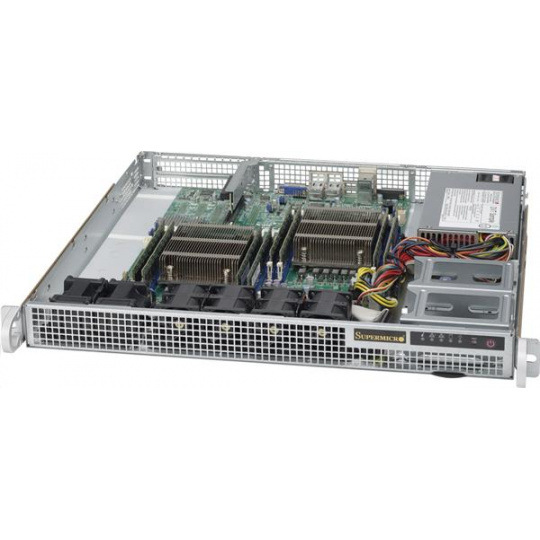

Key Features Support STD and WIO MB Optional Up to 4 x 2.5" fixed with bracket, Up to 1 x 3.5" fixed drive bay 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum Up to , 2 full height expansion slot(s) 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Super Micro Computer, Inc. Contact Us Search MySupermicro Home Products Chassis 1U [SC514-505] Chassis Manual Key Features Support STD and WIO MB Optional Up to 4 x 2.5" fixed with bracket, Up to 1 x 3.5" fixed drive bay 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum Up to , 2 full height expansion slot(s) 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Product SKUs CSE-514-505 SuperChassis 514-505 Form Factor Support STD and WIO MB Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 16.9" (429 mm) Gross Weight 16 lbs (7.26 kg) Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm) Available Color No Paint Expansion Slots Up to 2 full height expansion slot(s) Drive Bays Optional Upto 4 x 2.5" fixed with bracket Upto 1 x 3.5" fixed drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Motherboard (for CSE- 514-505) X10DRL-i X10DRL-CT X10DRD-iNTP X10DRD-iTP X10DRD-LTP X10DRL-iT X10DRL-C X10DRD-iNT X10DRD-iT X10DRD-i X10DRD-LT X10DRD-L X11SSW-F X10SDV-TP8F X10SDV-7TP8F X10SDV-7TP4F X10SDV-2C-TP8F X10SDV-2C-TP4F X10SDV-4C+-TP4F X10SDV-4C-7TP4F X10SDV-2C-7TP4F X10SRM-TF X10SRM-F X11SSW-4TF X11SSW-TF Servers (for CSE- 514-505) 6018R-MD Systems Cooling Fans 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum Power Efficiency 93% Total Output Power and Input 500W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 180 x 100 x 40 mm Output Type 24pin ATX -12V Max: 0.2A / Min: 0A +12V Max: 41A / Min: 0.5A (100Vac - 240Vac) +5V Max: 15A / Min: 0.2A +3.3V Max: 12A / Min: 0.2A +5Vsb Max: 3A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
