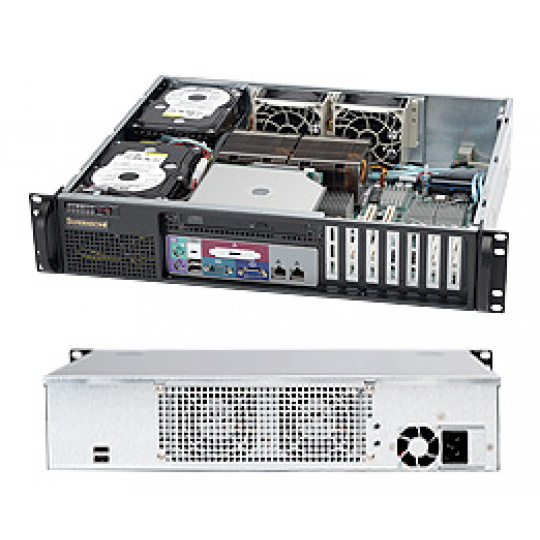

Supermicro® SC523L-55B 2U chassis
Popis a parametre
Supermicro® SC523L-55B 2U chassis
Key Features  1. Short-depth (14.5")Compact Size  2. 520W High-efficiency Power Supply  3. 2 x 3.5" Fixed Hard Drive Support  4. 1 x Slim DVD-ROM Drive (Optional)  5. 2 x 80mm 6300 RPM Fan  6. 7 x Low-profile, Full-length I/O     Expansion Slot  7. Front Access I/O  8. Power Switch & 6 LED Indicators  Form Factor    2U chassis support for max. motherboard size - 12" x 10" ATX     Processor Support    Supports dual and single Intel® Xeon® and AMD Opteron™ processors      Dimensions    Height 3.5" (89mm)  Width 17.2" (437mm)  Depth 14.5" (369mm)  Gross Weight 28 lbs (12.7 kg)  Available Colors Black     Expansion Slots    • 7x front-side low-profile full-length expansion slots     Drive Bays    Internal 2x Internal 3.5" Hard Drive 3.5" Bays     Peripheral Drives    DVD-ROM Slim 8x DVD, 24x CD, DVD-ROM Drive (Optional)     Front Panel    Buttons • Power On/Off button • System Reset button   LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED   I/O Front I/O Window      System Cooling    Fans 2x 80mm 6300 RPM fans     System Monitoring    Chassis intrusion switch
Supermicro® SC523L-55B 2U chassis
