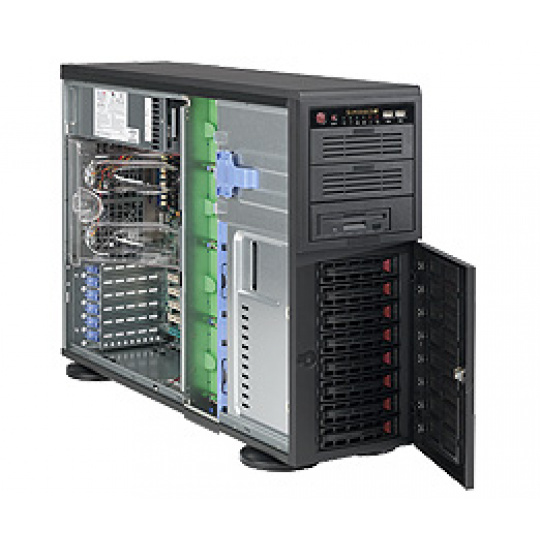

Key Features 1. 920W High-efficiency 80PLUS Platinum Level (94%+) Redundant Power Supplies 2. GPU Support 3. 8x SAS/SATA Hot-swap Drive Bays 4. Adjustable Air Shroud for flexible Configurations 5. 100% Cooling Redundancy 6. Rack mount / Tower Convertible 7. 2x Front USB Ports 8. Locking Bezel with Filter 9. Tool-less operation 10. Full SES2 support CSE-745TQ-R920B SuperChassis 745TQ-R920B (Black) Form Factor Tower / 4U chassis support for motherboard size - 13.68" x 13" (34.7cm x 33cm), ATX, E-ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 17.2" (437mm) Width 7.0" (178mm) Depth 25.5" (648mm) Gross Weight 62 lbs (28 kg) Available Colors Black Expansion Slots 7x PCI expansion slots Drive Bays Hot-swap 8x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) 2x 5.25" Peripheral Drive Bay 1x 5.25" Bay that fits 3.5" bay devices SAS / SATA Backplane SAS / SATA Hard Drive Backplane with SES2 Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB Ports System Cooling Fans 3x 5000 RPM Hot-swap PWM Cooling Fans 2x 5000 RPM Hot-swap Rear Exhaust PWM Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply with Power Distributor 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C AC Input 100-240 V, 50-60 Hz, 11-4.5 Amp DC Output 4 Amp @ +5V standby 75 Amp @ +12V With Power Distributor +5V: 50 Amp +3.3V: 30 Amp -12V: 0.6 Amp Certification 80PLUS Platinum Certified [ Test Report ] Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed China - CCC Mark Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-745TQ-R920B 1 4U Chassis (Black) Backplane CSE-SAS-743TQ 1 743 SAS BACKPLANE W/AMI MG9072 Cable 1 CBL-0044L 4 SATA CABLE 61CM FLAT S-S PBF Cable 2 CBL-0157L 1 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF Power Supply PWS-920P-1R 2 1U REDUNDANT 920W PMBus 94% EFFICIENCY Power Distributor PDB-PT745-8824 1 SC745 24PIN REDUNDANT POWER DISTRIBUTOR Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB Cable 3 CBL-0087 1 Front ctrl cable ROUND 16 TO 16 PIN RIBBON 20"( 50cm) Cable 4 CBL-0216L 3 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM) Fan 1 FAN-0074L4 3 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743 Fan 2 FAN-0082L4 2 80x38 4 pin PWM fan assembly for SC743, 745 Drive Tray(s) MCP-220-00092-0B 8 Black Hot-swap 3.5" HDD Tray (Gen. 2.5, w/o logo) Part(s) MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color Optional Parts List Part Number Qty Description Cable(s) CBL-0157L CBL-0153L MCP-290-00073-0N - - - 8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives) 6-pin Graphic Cords Power Extension Cable Cable Arm Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm) Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails CSE-PT26L-B - 4U Chassis Rail Kit (Includes Side Handles) (B = Black) Peripheral Drives DVM-SONY-DVDRW-HB DVM-LITEONFH-DVDRWB DVM-LITE-DVDRW-HBT DVM-LITE-DVD-HBT - - - - Black Sony Half-height DVD-RW IDE Drive, RoHS Black Liteon Half-height DVD-RW Drive, RoHS Black Liteon Half-height DVD-RW SATA Drive, RoHS Black Liteon Half-height DVD-RW SATA Drive, RoHS
