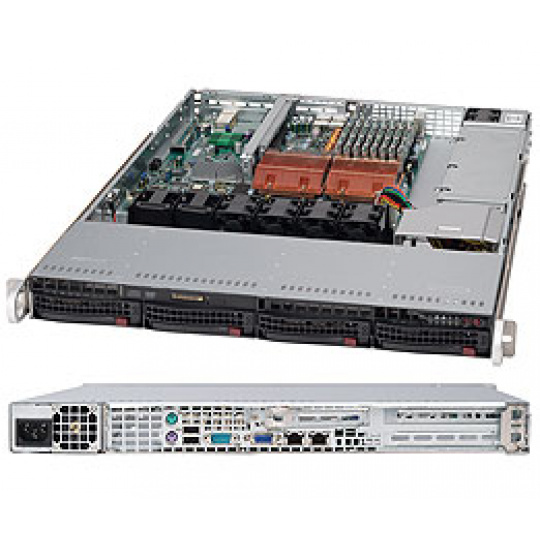

Key Features 1. 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified 2. 4x 3.5" Hot-swap SAS/SATA Drive Bays 3. 1x Slim DVD ROM Drive (Optional) 4. 4x Counter-rotating Fans 5. 1x Full-height, Full-length PCI-e Slot, 1x Full-height Universal I/O Slot, 1x Low-profile PCI Expansion Slot 6. Power Switch, Reset Button & 5 LED Indicators 7. Full SES2 support is available with SAS motherboards and other compatible components. roduct SKUs CSE-815TQ-563UB SuperChassis 815TQ-563UB (Black) Form Factor 1U chassis support for max. UIO motherboard size - 12" x 13" and 13.68" x 13" Processor Support Supports dual Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 25.6" (650mm) Gross Weight 36 lbs (16.4kg) Available Colors Black Expansion Slots 1x Full-height Universal I/O Expansion Slot 1x Full-height, Full-length PCI Expansion Slot 1x Low-profile PCI Expansion Slot Drive Bays Hot-swap 4x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane Peripheral Drives DVD-ROM Slim DVD-ROM drive (Optional) Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Ports 2x USB & DB9 COM port tray (Optional - in place of floppy drive) System Cooling Fans 4x 4cm Counter-rotating PWM fans Operating Environment (System) Operating Temperature Range 10 - 35°C (50° to 95° F) Non-Operating Temperature Range -40 - +70°C (-40° to 158° F) Humidity Range 8 - 90% non-condensing Non-Operating Humidity Range 5 - 95% non-condensing Power Supply 560W AC power supply w/ PFC (20-pin) AC Voltage 100-240 V, 50-60 Hz, 7.5 Amp max +5V 18 Amp +5V standby 3 Amp +12V 46 Amp @ 100-180V; 49 Amp @ 180-240V -12V 0.5 Amp +3.3V 15 Amp Certification 80PLUS Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed China - CCC Mark Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified Standard Parts List Part Number Qty Description Chassis CSE-815TQ-563UB 1 1U Chassis (Black) Air Shroud MCP-310-18001-0N 1 SC815/113 Intel DP X8.X7 PC air shroud, 13.68" x 13" / 12" x 13" MB Backplane / Drive Trays MCP-220-00024-0B BPN-SAS-815TQ 4 1 Black hot-swap 3.5" HDD tray (with plastic rails) SAS / SATA Backplane [ Manual ]; passed SAS-2 compatibility testing Accessory CSE-PT93L-B CSE-PT94L-B 1 1 Black DVD dummy cover Black FDD or USB tray dummy cover Cable(s) CBL-0061L CBL-0157L CBL-0180L-01 CBL-0087 4 1 1 1 35cm SATA cable 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives) SATA set of 4-70/59/48/38cm round S-RA Front ctrl cable round 16 to 16 pin ribbon 20" Cooling FAN-0086L4 CSE-PT0135 4 1 40x56cm 4-pin Counter-rotating PWM Fan Fan holder for six 40x56mm counter rotating fans Front Panel MCP-280-81301-0N 1 Non-U front control board (FP813) Mounting Rails CSE-PT51L 1 1U Slide Rails Power Supply PWS-563-1H20 1 560W High-efficiency (80Plus Gold) 1U multi output PS, 20-pin Rear Window MCP-240-00083-0N 1 UIO rear window for SC113 single PWS Optional Parts List Part Number Qty Description Front Tray CSE-PT40(B) - Front USB and COM tray (Occupies Slim Floppy Drive Location) Heatsink / Retention - - Please refer to our Thermal Components Matrix Mounting Rails MCP-290-00056-0N MCP-290-00052-0N-BULK MCP-290-00054-0N - - - 19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis 25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack) 25.6" to 33.05" rail set, quick/quick, for 1U 17.2" W chassis Peripheral Drives DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT1 DVM-PNSC-DVD-SBT1 CSE-PT92L MCP-220-81502-ON - - - - - - Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit (include backplane, cable) Slim SATA DVD kit (include backplane, cable) Peripheral Drives FPD-TEAC-SB CSE-PT91L - - TEAC 3.5" 1.44MB Slim Floppy Drive (B = black) Slim FDD kit Trays MCP-220-83601-0B MCP-290-00036-0B - - Black FDD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick
