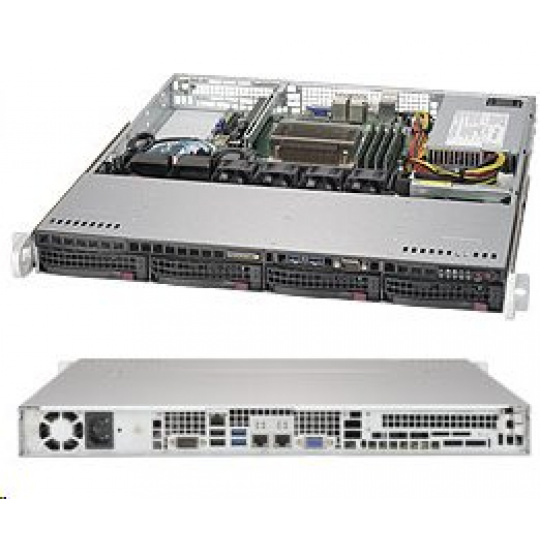

Key Features • Embedded • Security and Surveillance • Appliance Server, Secure Storage • Rack Workstation 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. 4x 3.5" Hot-swap SATA3 bays, Intel RST 4. Up to 64GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 4 DIMM slots 5. 1x PCI-E 3.0 x16 FH, FL slot 6. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM 7. Integrated IPMI 2.0 and KVM with Dedicated LAN 8. I/O ports: 1x VGA, 2x COM (1x front access, 1x header), 4x USB 3.0 (2 rear), 9x USB 2.0 (2 rear, 1 Type A), 1x SuperDOM (shared) audio header 9. 350W Platinum Level Power Supply Product SKUs SYS-5019S-M2 SuperServer 5019S-M2 (Black) Motherboard Super X11SSZ-F Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 Non-ECC UDIMM Memory Type 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V On-Board Devices Chipset Intel® C236 chipset SATA 4x SATA3 (6Gbps) via Intel® C236 controller RAID 0, 1, 5, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio RealTek ALC 888S High Definition Audio Video ASPEED AST2400 BMC Input / Output SATA 4x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 2x USB 3.0 ports (2 rear) 3x USB 2.0 ports (2 rear + 1 Type A) Audio Front panel header Video/Display 2x DP (Display Port), 1x DVI-I from Intel® HD Graphics, 1x VGA from AST2400 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM Serial Port / Header 2x serial headers SuperDOM 1x SuperDOM (Disk on Module) ports with built-in power PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 5 fan headers supporting up to 5 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free Chassis Form Factor 1U Rackmount Model CSE-813MFTQC-350CB Dimensions and Weight Height 1.7" (43mm) Width 17.2" (437mm) Depth 23.4" (594mm) Package 8.5" (H) x 24" (W) x 29.5" (D) Weight Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Expansion Slots PCI-Express 1x PCI-E 3.0 x16 FH, FL slot Drive Bays Hot-swap 4x 3.5" Hot-swap SATA3 drive bays Backplane SAS/SATA HDD Backplane (SAS support requires optional SAS controller) System Cooling Fans 4x 4cm internal fans Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V Max.: 15 Amp Min.: 0.2 Amp +5V standby Max.: 3 Amp Min.: 0 Amp +12V Max.: 29 Amp Min.: 0.5 Amp -12V Max.: 0.2 Amp Min.: 0 Amp +3.3V Max.: 12 Amp Min.: 0.2 Amp Certification Platinum Level Certified Platinum Level Certified [ Test Report ] System BIOS BIOS Type 8MB SPI Flash EEPROM with AMI BIOS BIOS Features DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
