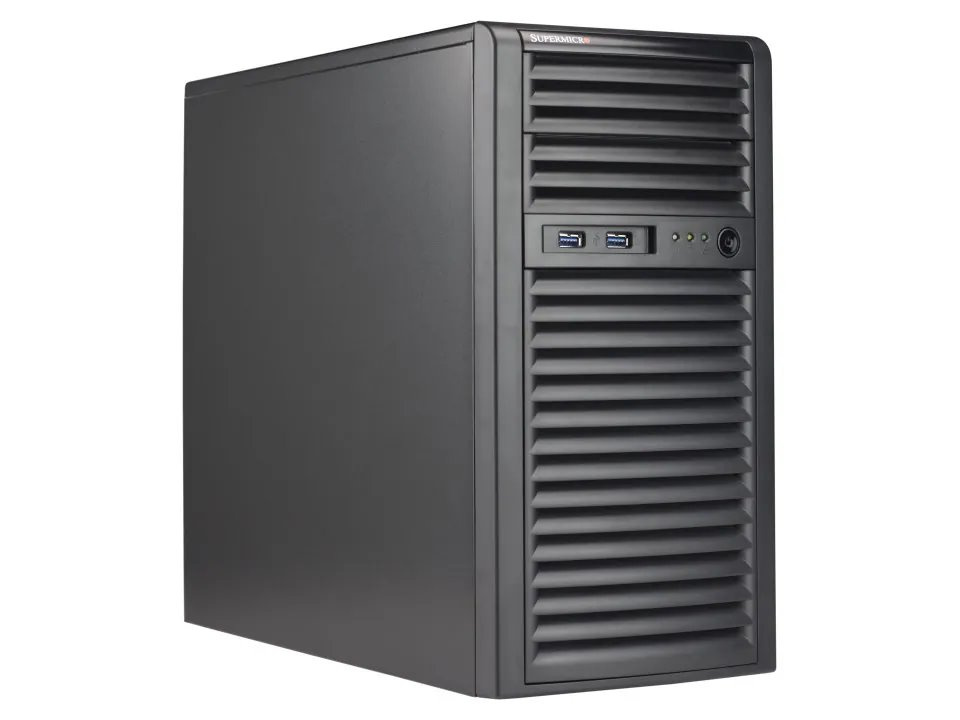

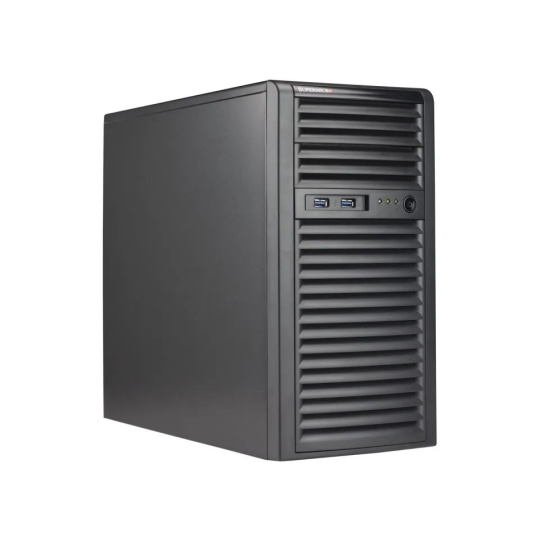

Product SKUs SuperWorkstation SYS-530T-I Motherboard Super X12STL-F Processor CPU Single Socket H5 (LGA-1200) Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors Core Count Up to 8C/16T; Up to 16MB Cache Note Supports up to 95W TDP CPUs (Air Cooled) GPU Max GPU Count Up to 1 double-width GPU System Memory Memory Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM View Memory Options Memory Voltage 1.2V On-Board Devices SATA SATA (6Gbps) Chipset Intel® C252 Network Connectivity 2 RJ45 1GbE with Intel® I210-AT View AOC Options Input / Output USB 2 USB 2.0 Type-A ports(rear) Video 1 VGA port TPM 1 TPM header System BIOS BIOS Type AMI 256MB SPI Flash Management Software SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Power configurations ACPI 6.0 Power Management Security Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant PC Health Monitoring Voltage +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL Chassis Form Factor mini-tower Model CSE-731I-404B Dimensions and Weight Height 14.25" (362 mm) Width 7.25" (184 mm) Depth 16.75" (425 mm) Package 20" (H) x 11" (W) x 21" (D) Weight Gross Weight: 20 lbs (9.07 kg) Net Weight: 16 lbs (7.26 kg) Available Color Black Front Panel LED HDD activity LED Network activity LEDs Power LED System Overheat LED Buttons Power On/Off button Port USB 3.0 Port(s) Expansion Slots PCI-Express (PCIe) Configuration Default 2 PCIe 4.0 x8 FHFL slots 1 PCIe 4.0 x4 FHFL slot 1 PCIe 3.0 x2 FHFL slot View AOC Options Drive Bays / Storage Drive Bays Configuration Default: Total 4 bays 4 internal fixed 3.5" SATA drive bays View Drive Options M.2 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110) View M.2 Options Peripheral Bays 2 5.25" bays System Cooling Fans 1x 90mm Fan(s) Power Supply 1x 400W Gold Level (90%) power supply Dimension (WxHxL) 150 x 86 x 140 mm Input 100-240Vac 400W: 100-240Vac / 50-60Hz +12V Max: 12.62A / Min: 0.05A (100Vac-240Vac) Max: 12.62A / Min: 0A (100Vac-240Vac) 5V SB Max: 2.23A / Min: 0A Output Type 24pin ATX Certification Gold Level [ Test Report ] Operating Environment Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing
