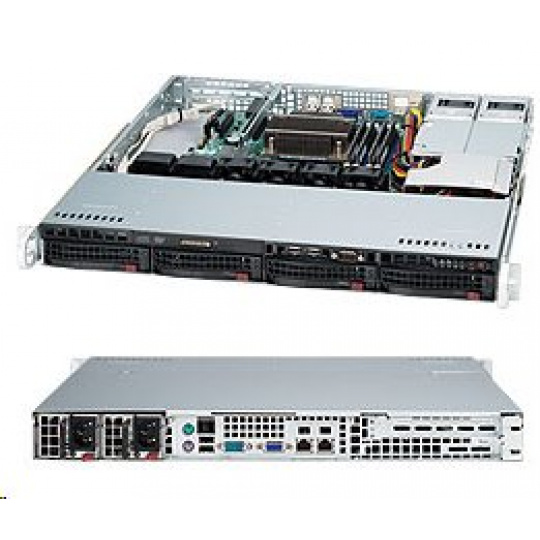

Product SKUs CSE-813MTQ-R400CB SuperChassis 813MTQ-R400CB (Black) Form Factor 1U chassis support for motherboard sizes - Micro ATX9.6" x 9.6" or ATX 12" x 10" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 19.85" (503mm) Gross Weight 33.5 lbs (15.2kg) Available Colors Black Expansion Slots 1x Full-height AOC expansion slot Drive Bays Hot-swap 4x 3.5" Hot-swap SAS2 (6Gb/s) / SATA drive bays SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x SAS / SATA Backplane Key Features 1. 400W Redundant power supplies 2. 4x 3.5" Hot-swap SAS2 (6Gb/s) / SATA Drive Bays 3. 1x Full-height AOC expansion slot 4. 4x 40x28mm high-efficiency fans (2 more optional; 6x fans maximum) 5. 1x Slim DVD/CD-ROM Drive (opt.) 6. Front USB/COM access 7. Applications: data center, appliance server, space critical application, industrial PC Peripheral Drives DVD-ROM Slim DVD-ROM drive (opt.) Others Front USB/COM access Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED System Cooling Fans 4x 4cm 4-pin PWM fans 2x additional fans optional; 6x fans total maximum Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C AC Input 400W: 100-240 V, 50-60 Hz, 6-3 Amp DC Output +5V standby 3 Amp DC Output +12V 33 Amp With Power Distributor +5V: 25 Amp +3.3V: 25 Amp -12V: 0.6 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant
