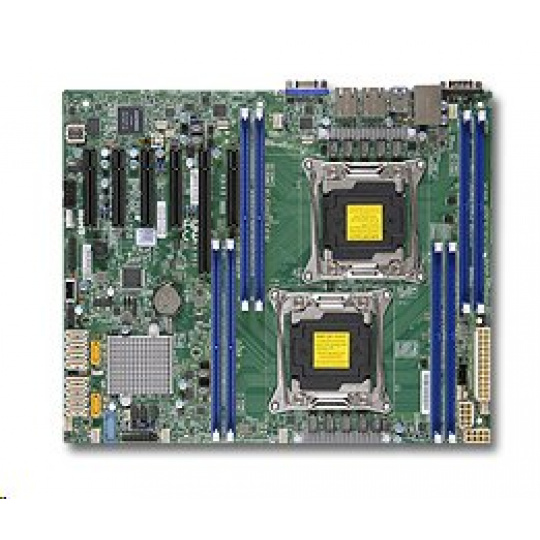

Popis produktu: Product SKUs MBD-X10DRL-i -O X10DRL-i (Standard Retail Pack) MBD-X10DRL-i -B X10DRL-i (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12" x 10" (30.48cm x 25.4cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP **) Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 8x 288-pin DDR4 DIMM sockets Up to 512GB ECC LRDIMM, 256GB ECC RDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C612 Express chipset SATA I-SATA 4 and I-SATA 5 support SATA DOM SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® i210 Gigabit Ethernet controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) Video ASPEED AST2400 BMC Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 ports (2 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A) Video 1x VGA port Serial Port / Header 2x Fast UART 16550 port / 1 Header DOM DOM (Disk on Module) power connector TPM 1x TPM 1.2 20-pin Header SuperServer(s) with X10DRL-i Model(s) SYS-6018R-MTR Expansion Slots PCI-Express 3 PCI-E 3.0 x8 1 PCI-E 3.0 x16 1 PCI-E 3.0 x4 (in x8) 1 PCI-E 2.0 x4 (in x8) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog IPMI 2.0 Power Configurations ACPI / APM Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. 5 Phase-switching voltage regulator FAN 8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free Dual Cooling Zones Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
