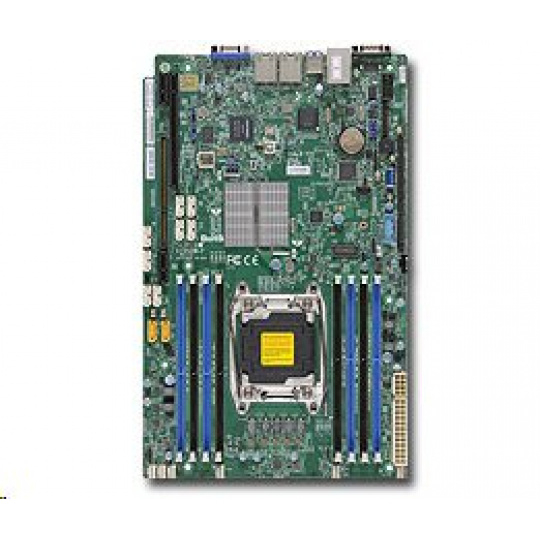

Popis produktu: Product SKUs MBD-X10SRi-F -B X10SRi-F (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12" x 9.6", (30.5cm x 24.4cm) Processor CPU Intel® Xeon® processor E5-2600/1600 v3 family (up to 145W TDP **) Single Socket R3 (LGA 2011) Core / Cache Up to 18 Cores / Up to 45MB Cache Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support System Memory Memory Capacity 8x 284-pin DDR4 DIMM sockets Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 284-pin gold-plated DIMMs DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel C612 Express chipset SATA SATA3 (6Gbps) via C612 controller RAID 0, 1, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® i350-AM2 Dual Port Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) Graphics ASPEED AST2400 BMC Input / Output SATA 10x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 ports (2 rear + 1 via header + 1 Type A) 8x USB 2.0 ports (2 rear + 6 via header) Video 1x VGA port Serial Port / Header 1x serial port, 1x header SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power TPM 1x TPM 1.2 20-pin Header OS Compatibility • Please reference the OS Compatibility Chart for details Chassis ( Optimized for X10SRi-F ) Important Chassis Notes To support motherboards based on Intel® Xeon® processor 5500/3500 series, Revision K or later chassis is recommended for most models. Please talk to your sales representative for details. Expansion Slots PCI-Express 1x PCI-E 3.0 x16 slot 1x PCI-E 3.0 x4 (in x8) slot 2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x4 (in x8) slot 1x PCI-E 2.0 x2 (in x8) slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software Intel® Node Manager IPMI 2.0 with KVM support SuperDoctor® 5 Watch Dog NMI SPM SUM Power Configurations ACPI / APM Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free
