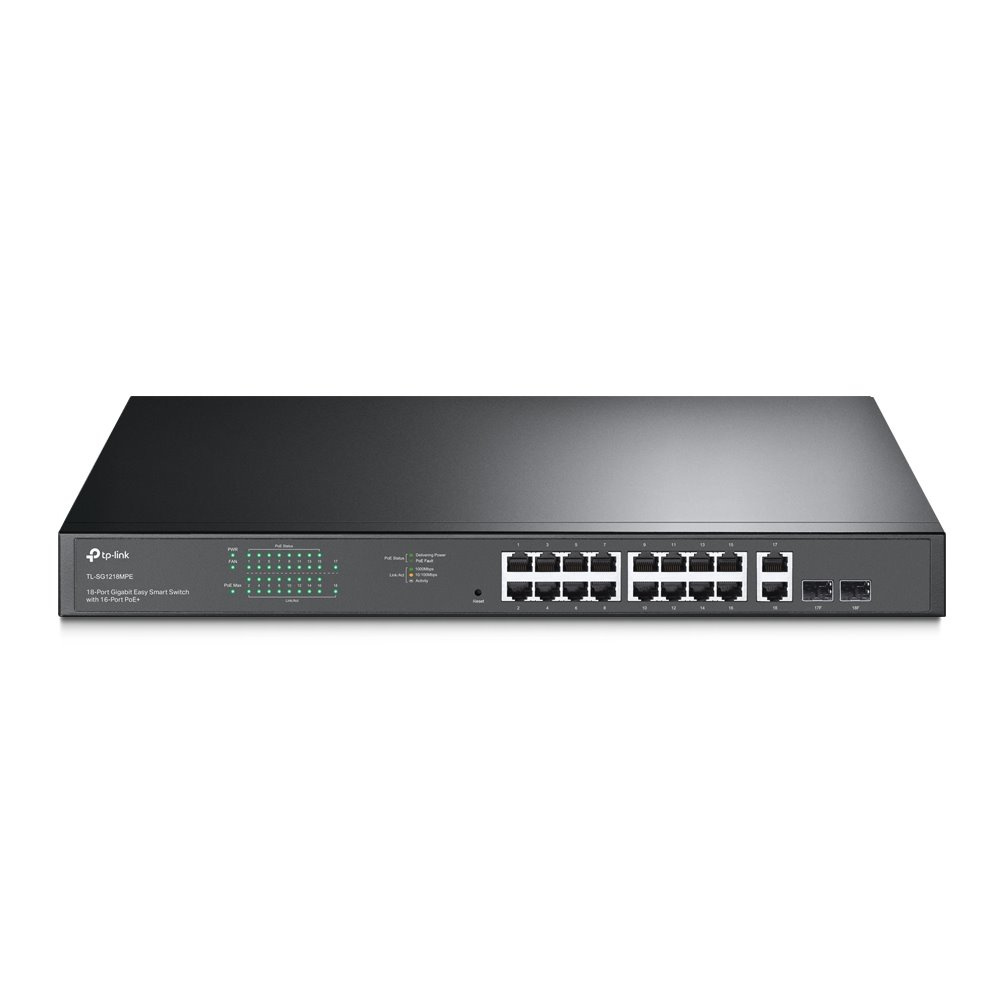

TL-SG1218MPE
18portový gigabitový Easy Smart switch so 16 portami PoE+
16 gigabitových portov RJ45 PoE+, 2 gigabitové porty RJ45 bez PoE a 2 kombinované gigabitové SFP sloty.
Rozpočet napájania PoE je až 250 W, vďaka čomu je ideálnou voľbou pre dohľadové systémy v malých a stredne veľkých firmách.*
Prioritný port dokáže zaistiť kvalitnú prevádzku citlivých aplikácií, napríklad video monitorovanie.
Funkcia automatického obnovenia PoE automaticky reštartuje vypadnuté alebo nereagujúce zariadenia napájané cez PoE.
Inteligentné riadenie spotreby ochráni switch pred preťažením.
QoS zaistí plynulý chod aplikácií citlivých na oneskorenia.
IGMP Snooping optimalizuje dátové prenosy multimediálnych aplikácií ako IPTV.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation • 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
SOFTWARE FEATURES
Quality of Service • Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features • IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery
VLAN • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
Management • Web-based GUI
• Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
