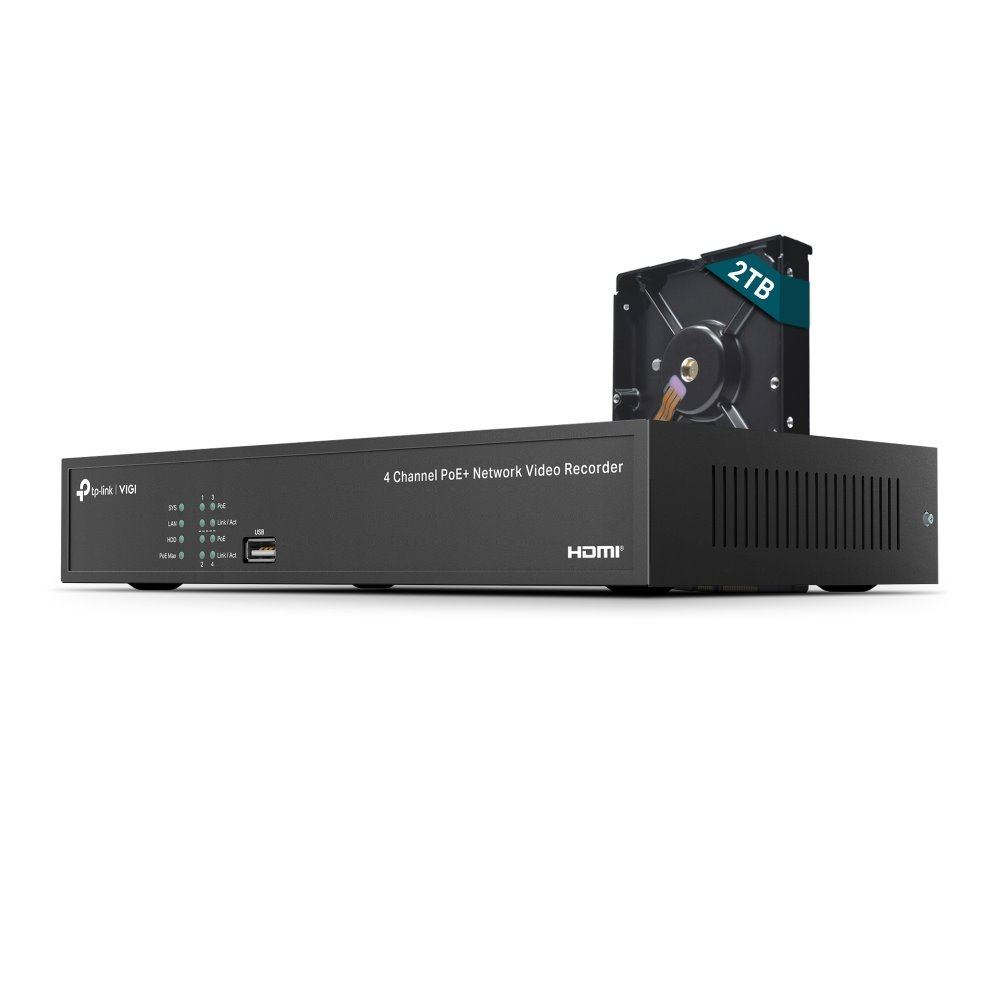

VIGI NVR1004H-4P
VIGI 4-kanálový sieťový videorekordér PoE+
4-kanálový živý náhľad a 4K HDMI video výstup
4 × 10/100 Mbps PoE+ porty s 53 W PoE rozpočtom?
2-kanálový @ 8MP / 4-kanálový @ 4MP schopnosť dekódovania*
4-kanálové synchrónne prehrávanie†
80 Mbps prichádzajúca šírka pásma a 60 Mbps odchádzajúca šírka pásma
1 × SATA rozhranie a 1 až 10 TB (1 × 2 TB HDD predinštalovaný)
Technológia kompresie H.265+
Simultánny výstup HDMI a VGA
Vzdialené monitorovanie

VIDEO AND AUDIO
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 4-Channel†
Capability • 25fps:
2-ch @ 8MP, 4-ch @ 4MP

• 30fps:
4-ch @ 4MP, 3-ch @ 5MP
RECORD MANAGEMENT
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interface
Capacity • Up to 10 TB Capacity for Each HDD
• 1 × 2TB HDD Preinstalled
POE
Standard 802.3at/af Compliant
Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 53 W? Available for All PoE+ Ports, 30 W Max per Port
ALARM
General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents • VIGI Network Video Recorder
• Power Adapter
• Power Cables
• Rubber Feet
• Mouse
• Quick Installation Guide
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 246.2 × 148.2 × 45 mm
Power Supply 53.5V DC/1.31A
Power Consumption • 4.25 W (Without Disk)
• 13.10 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
