TP-LINK "4MP Full-Color Wi-Fi Turret Network CameraSPEC:2.4G 150Mbps, 2*2 MIMO, H.265+/H.265/H.264+/H.264, 1/3"" Progre

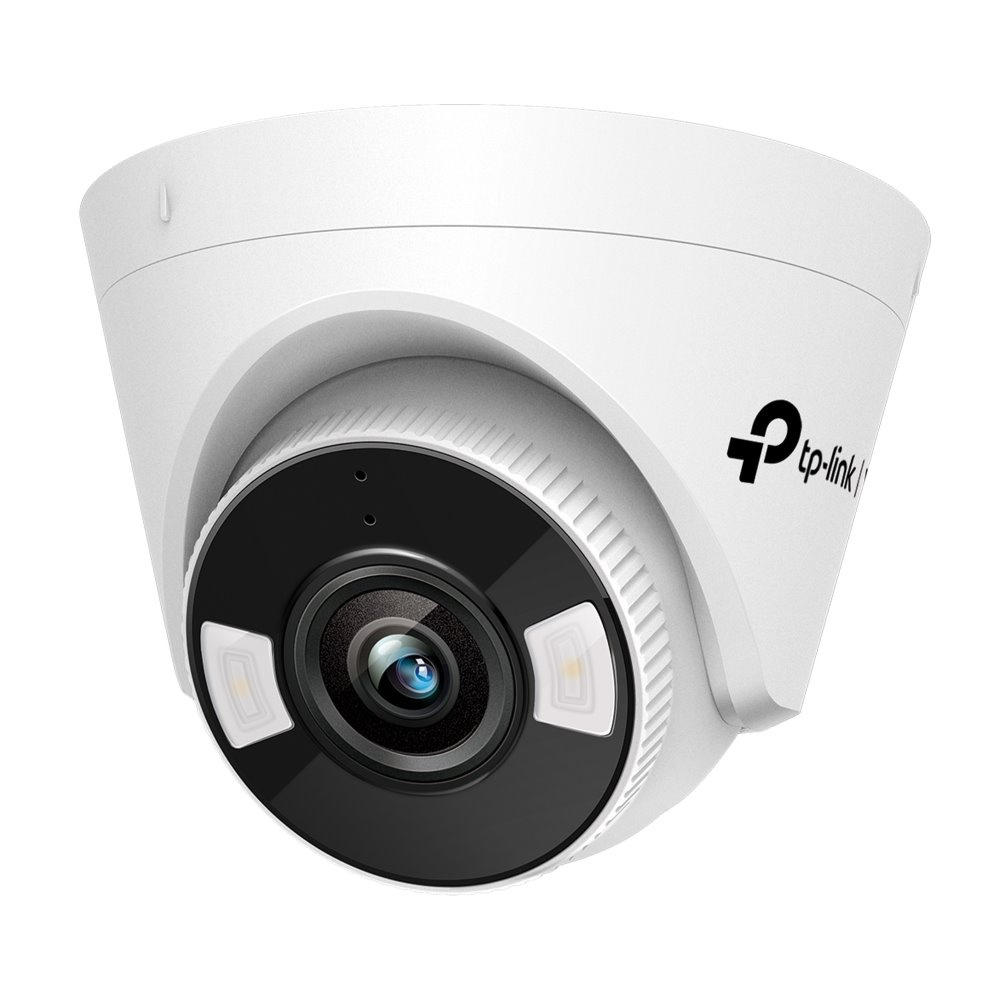

VIGI C440-W
VIGI 4 MPx vnútorná kopulová Wi-Fi sieťová kamera s plnofarebným nočným videním
4 MPx s rozlíšením UHD: Kamera VIGI C440 má rozlíšenie 4 MPx – viac ako dosť pixelov na to, aby zachytila ??niektoré diskrétnejšie detaily.
Nepretržité farebné snímanie: Spoľahnite sa na 24-hodinové snímanie farebných detailov aj v čiernočiernej tme vďaka vysoko citlivému snímaču a LED bodovým svetlám.
Bezdrôtové pripojenie: Jednoduché a rýchle nasadenie na miesta pokryté Wi-Fi signálom.
Inteligentná detekcia (detekcia pohybu, narušenie priestoru, prekročenie línie, neoprávnená manipulácia s kamerou): Prijímajte oznámenia a kontrolujte videokanály, keď niekto prekročí hranicu, vstúpi do nastavenej oblasti alebo prekáža kamere.
Chytré kódovanie H.265+: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu.
Vzdialené sledovanie: Spravujte svoje zabezpečenie priamo z dlane pomocou aplikácie VIGI.
CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed focal lens (4 mm)
Aperture 4 mm: F1.6
Lens Mount M12
Viewing Angle (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Illumination Distance 30m (LED)
Minimum Illumination 0 lux with IR/white Light
Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction 3D DNR
WDR DWDR
NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Frequency 2.4 GHz
Wireless Security WPA/WPA2-PSK
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
GENERAL
Package Contents VIGI Network Camera
Quick Start Guide
Screws and Anchors
Mounting Template
Operating Temperature -30–60 °C
Certifications CE, FCC, RCM, BSMI, VCCI, RoHS
Dimensions( H X W X D ) 123 × 123 × 84 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Consumption 12V DC: Max 7W
VIDEO/IMAGE
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Button Reset Button
Slot Micro SD card
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
