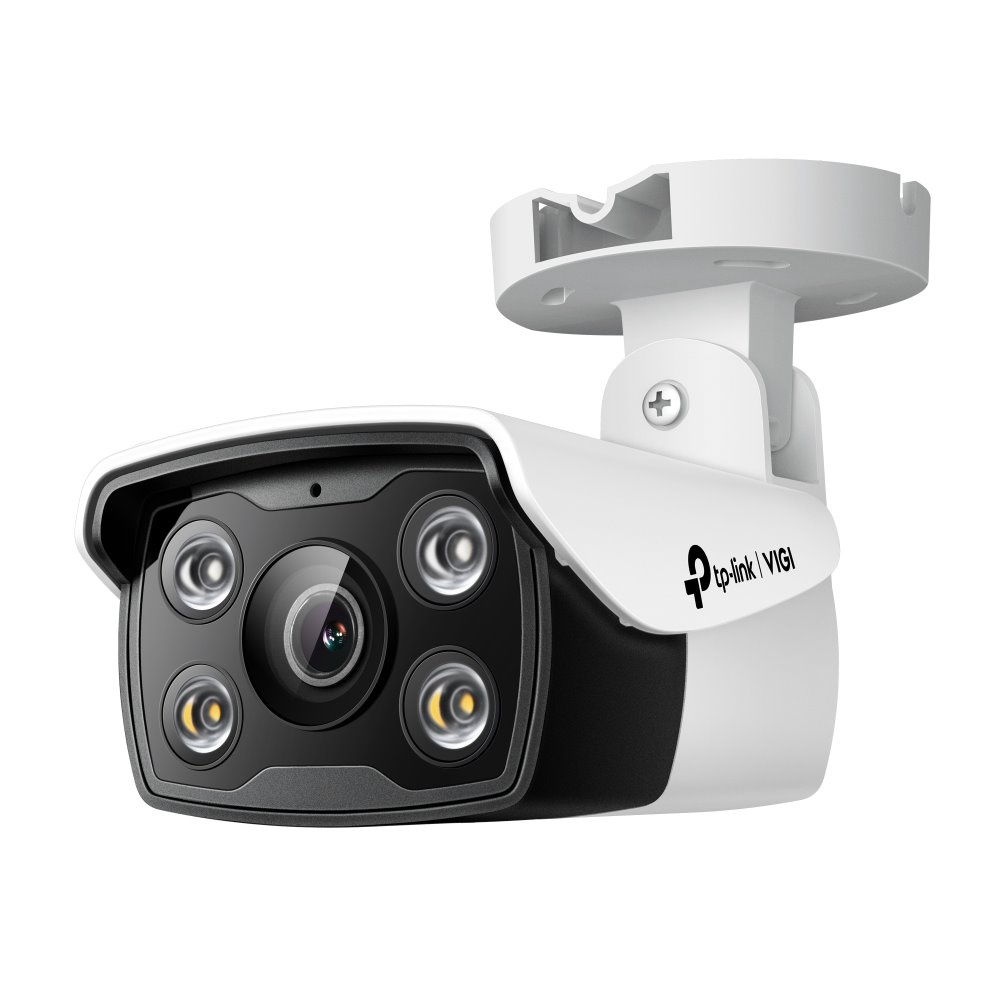

VIGI C340
VIGI 4 MPx vonkajšia bullet sieťová kamera s plnofarebným nočným videním
Vysoké rozlíšenie 4 MPx: Kamera má rozlíšenie 4 MPx – viac ako dosť pixelov na to, aby zachytila ??niektoré diskrétnejšie detaily.
Nepretržité farebné snímanie: Spoľahnite sa na 24hodinové snímanie farebných detailov aj v čiernočiernej tme vďaka vysoko citlivému snímaču a bielemu LED prísvitu.
Vodeodolnosť : Spoľahlivé krytie IP66 pre stabilnú vonkajšiu prevádzku.
Inteligentná detekcia (detekcia osôb, detekcia pohybu, narušenie priestoru, prekročenie línie, neoprávnená manipulácia s kamerou): Prijímajte oznámenia a kontrolujte videokanály, keď niekto prekročí hranicu, vstúpi do nastavenej oblasti alebo prekáža kamere.
H.265+: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu.
PoE / 12 V DC: Dva spôsoby napájania vám poskytnú nielen väčšie pohodlie, ale aj mimoriadne uľahčia zapojenie.‡
Objektív 2,8/4/6 mm: Kamera C340 sa dodáva s tromi rôznymi typmi objektívov, ktoré lepšie vyhovujú vašim bezpečnostným potrebám, či už potrebujete širokouhlý objektív na pokrytie uzavretých priestorov, alebo dlhší objektív na dlhšie vzdialenosti v otvorených priestoroch.
Aplikácia VIGI: Spravujte svoje zabezpečenie priamo z dlane pomocou aplikácie VIGI.

CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0 lux with IR/white Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Lens Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture 2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens Mount M12
Viewing Angle (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
IR Working Distance 30m
Illumination Distance 30 m
Weatherproof Rating IP66
Digital Noise Reduction 3D DNR
WDR DWDR
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
FOV 2.8mm:
Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

6mm:
Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Lens Mount M12
DORI Distance 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

6 mm
Detect: 128 m (420 ft)
Observe: 53 m (175 ft)
Recognize: 26 m (84 ft)
Identify: 13 m (42 ft)
VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range Pan: -90° to 90°,
Tilt: -90° to 90°
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
ONVIF Yes
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Alarm N/A
Reset Button Yes
Power DC Power Port
Button Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
ALARM AND EVENT MANAGEMENT
Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
GENERAL
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Storage Humidity 95% or Less (Non-Condensing)
Operating Humidity 95% or Less (Non-Condensing)
Dimensions( H X W X D ) 78 × 70 × 174 mm
Material Plastic
Weight 195g
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.28 Kg
Gross Weight 0.42 Kg
Power Consumption 12V DC: Max 7.5W
PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection IP66
Product Dimensions (L x W x H) 78× 174 × 70 mm
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
VIDEO/IMAGE
Video Compression Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
