TP-LINK "5-Port 2.5G Desktop Switch with 4-Port PoE++ PORT: 4× 2.5G PoE++ Ports, 1x 2.5G Non-PoE PortSPEC: 802.3af/at/
Popis a parametre
TP-LINK "5-Port 2.5G Desktop Switch with 4-Port PoE++ PORT: 4× 2.5G PoE++ Ports, 1x 2.5G Non-PoE PortSPEC: 802.3af/at/

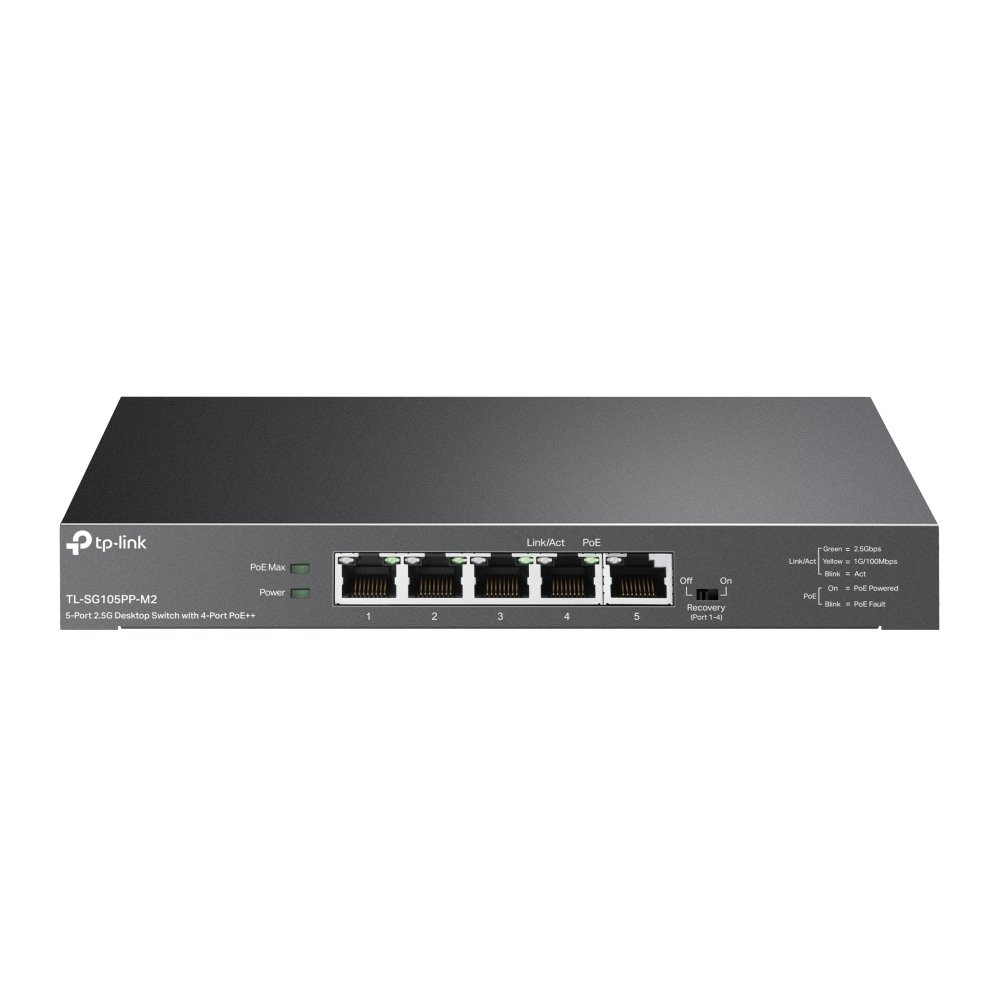

TL-SG105PP-M2
5portový 2.5G stolný switch so 4 portami PoE++
5x 2,5 Gbit/s RJ45 porty s podporou rýchlosťou 10 Mbit/s, 100 Mbit/s, 1 Gb/s a 2,5 Gb/s
4 porty PoE++ prenáša dáta a napájanie spoločne po jedinom kábli
Pracuje s IEEE 802.3af/at/bt Type 3 kompatibilnými PD zariadeniami
802.1p/DSCP QoS umožňuje hladkú prevádzku dát citlivých na latenciu.
Podporuje výkon PoE až 60 W na každý PoE++ port
Podporuje celkový PoE výkon až 123 W na všetky POE porty*
Funkcia automatického obnovenia PoE garantuje stabilnú prevádzku PoE zariadenia automatickým reštartom vypadnutých alebo nereagujúcich PD zariadení
Plug and Play, bez potreby konfigurácie a inštalácie
HARDWARE FEATURES
Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 18.6 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant
• PoE++ Ports: Ports 1–4
• Power Supply: 123 W
Mac Address Table 4K
Switching Capacity 25 Gbps
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption • 7.57 W (220/50 Hz. no PD connected)
• 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation • 25.81BTU/h (220 V/50 Hz with no PD connected)
• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• PoE Auto Recovery (Ports 1-4)
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG105PP-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
5portový 2.5G stolný switch so 4 portami PoE++
5x 2,5 Gbit/s RJ45 porty s podporou rýchlosťou 10 Mbit/s, 100 Mbit/s, 1 Gb/s a 2,5 Gb/s
4 porty PoE++ prenáša dáta a napájanie spoločne po jedinom kábli
Pracuje s IEEE 802.3af/at/bt Type 3 kompatibilnými PD zariadeniami
802.1p/DSCP QoS umožňuje hladkú prevádzku dát citlivých na latenciu.
Podporuje výkon PoE až 60 W na každý PoE++ port
Podporuje celkový PoE výkon až 123 W na všetky POE porty*
Funkcia automatického obnovenia PoE garantuje stabilnú prevádzku PoE zariadenia automatickým reštartom vypadnutých alebo nereagujúcich PD zariadení
Plug and Play, bez potreby konfigurácie a inštalácie
HARDWARE FEATURES
Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 18.6 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant
• PoE++ Ports: Ports 1–4
• Power Supply: 123 W
Mac Address Table 4K
Switching Capacity 25 Gbps
Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption • 7.57 W (220/50 Hz. no PD connected)
• 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation • 25.81BTU/h (220 V/50 Hz with no PD connected)
• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• PoE Auto Recovery (Ports 1-4)
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG105PP-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
