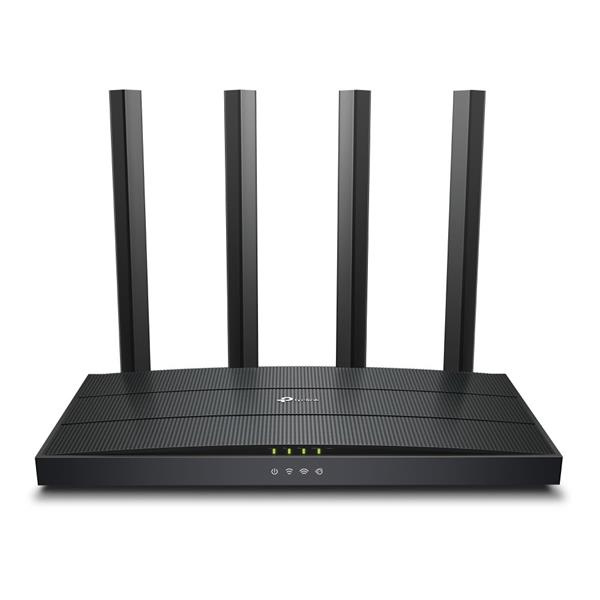

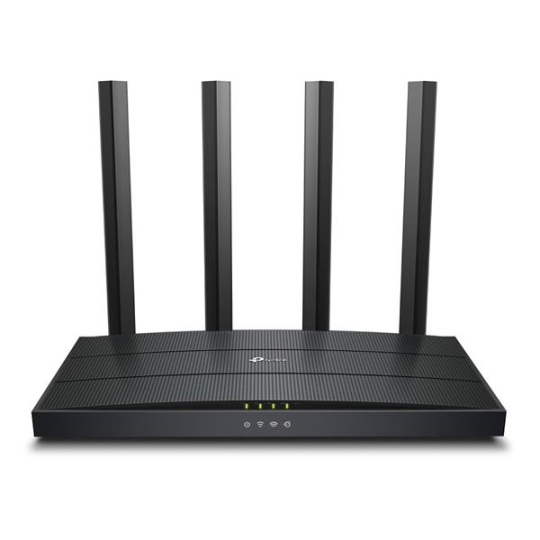

Dvojpásmový gigabitový Wi-Fi 6 router
Technológia Wi-Fi 6: Archer AX12 je vybavený najnovšou bezdrôtovou technológiou Wi-Fi 6 prinášajúcou vyššie rýchlosti, väčšiu kapacitu a nižšie zahlcovanie siete.
Rýchlosti 1,5 Gb/s budúcej generácie: Dvojpásmový router Archer AX12 dosahuje ešte vyššie rýchlosti – až 1,5 Gb/s (1 201 Mb/s v pásme 5 GHz a 300 Mb/s v pásme 2,4 GHz)15
Pripojenie viacerých zariadení: Technológia Wi-Fi 6 dokáže komunikovať s väčším počtom zariadení pomocou revolučných technológií OFDMA a MU-MIMO a súčasne znižuje oneskorenie dátových prenosov24
Spoľahlivejšie pokrytie: S routerom Archer AX12 dosiahnete najsilnejšie a najspoľahlivejšie pokrytie Wi-Fi signálom, pretože pomocou technológie Beamforming a štvorice antén sústredí silu signálu priamo do vašich zariadení.
Dlhšia výdrž batérie: Technológia Target Wake Time znižuje spotrebu energie zariadenia a predlžuje tak výdrž ich batérie.3
Jednoduché nastavenie: S výkonnou aplikáciou TP-Link Tether nastavíte router za pár minút.
Spätná kompatibilita: Archer AX12 podporuje všetky predchádzajúce štandardy 802.11 a všetky Wi-Fi zariadenia.

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Ethernet Ports 1× Gigabit WAN Port
3× Gigabit LAN Ports
Buttons WPS/Reset Button
Power 12 V ? 1 A
SECURITY
WiFi Encryption WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75
PHYSICAL
Dimensions (W×D×H) 8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm)
Package Contents Wireless Router Archer AX12
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
