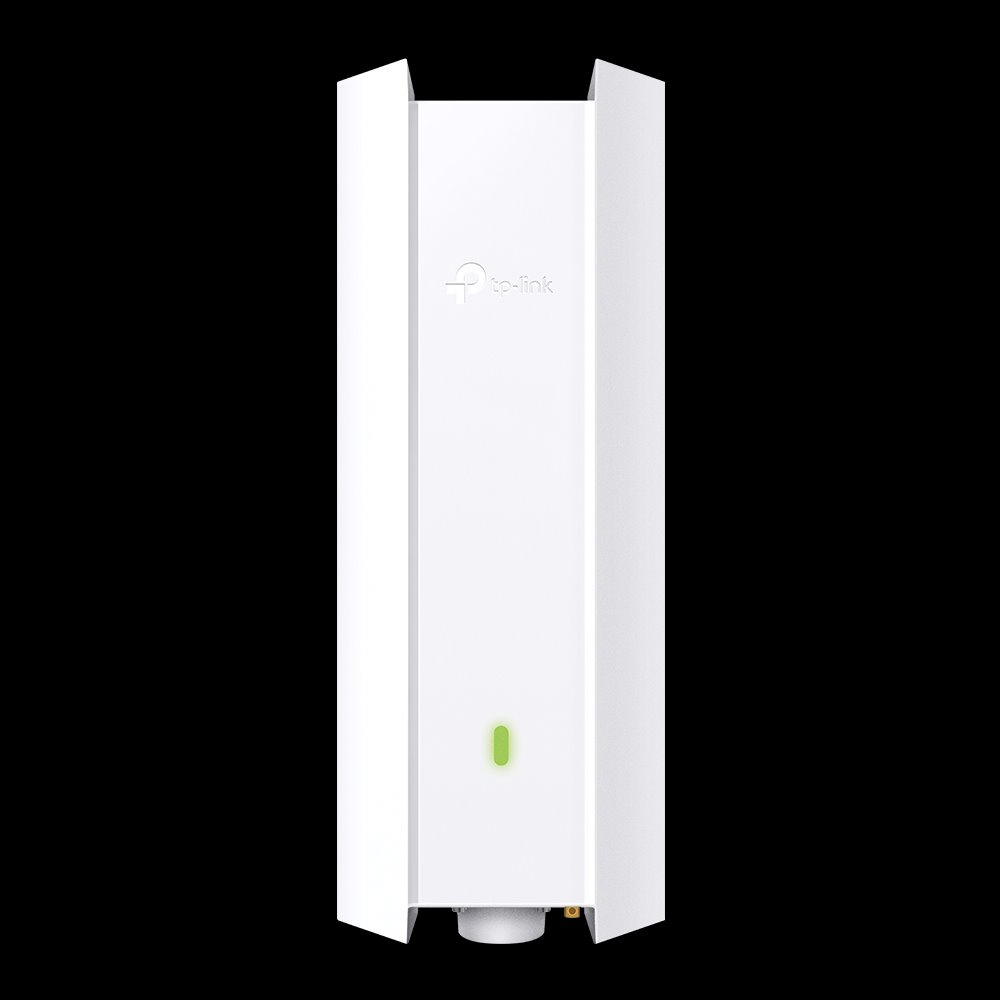

EAP623-Outdoor HD
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps na 2.4 GHz + 1201 Mbps na 5 GHz.*
Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.†
High-density connectivity up to 1,000+ clients.**
Long-range coverage with high-power amplifier a smart antennas.
IP67 weatherproof enclosure for various outdoor environments.
Advanced Functions: Centralized management, Omada mesh, and seamless roaming.?
PoE+ Powered: Supports 802.3at PoE (adapter nie je zahrnutý).

HARDWARE FEATURES
Interface 1x Gigabit Ethernet Port
Button Reset
Power Supply • 802.3at PoE
• 48V Passive PoE

Note: PoE adapter is not included.
Dimensions ( W x D x H ) 11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm)
Antenna Type 2× Internal Dual-Band Omni Antennas
• 2.4 GHz: 4.0 dBi;
• 5 GHz: 5.0 dBi
Weatherproof Enclosure IP67
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients 1,020+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 5 GHz, and 2.4 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • Mesh?
• Seamless Roaming?
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication?
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• 802.1X Support
Transmission Power • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP623-Outdoor HD
• Installation Guide
• Mounting Kit
• Waterproof Kit
Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
