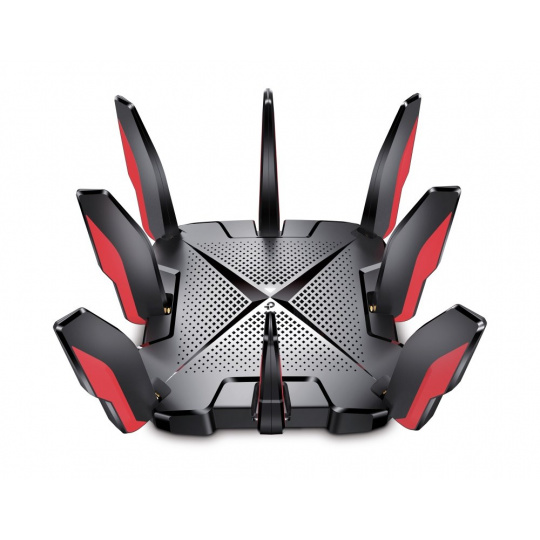

Archer GX90
Trojpásmový herný Wi-Fi 6 router AX6600
Herné pásmo – trojpásmové prevedenie poskytuje 4,8 Gbit/s herné pásmo vyhradené pre vaše herné servery a umožňuje ničím nerušené hranie.
Herný akcelerátor – detekuje a optimalizuje herné streamy, aby ste mohli zostať ponorení v hernom svete.
Herné štatistiky - latencia v reálnom čase, doba hrania a vyhradené sieťové prostriedky prehľadne vo vyladenom užívateľskom rozhraní.
Herná ochrana – chráňte svoje účty a dokumenty so systémom zabezpečenia Homecare™.
Široké pokrytie – 8 antén, technológia Beamforming, výkonný modul FEM a 4T4R zaisťujú pokrytie Wi-Fi signálom až pre 5izbové domácnosti.
Káblové pripojenie 2,5 Gbit/s – odhaľte potenciál siete so šírkou pásma budúcej generácie vďaka portu 2,5 Gbit/s WAN/LAN.
Výkonný procesor – 1,5GHz štvorjadrový procesor je zárukou, že sieť vždy pobeží na plný výkon.
Jednoduché nastavenie – s prepracovanou aplikáciou Tether je nastavenie otázkou niekoľko málo minút.

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
1× Gigabit WAN/LAN Port
3× Gigabit LAN Ports
USB Support 1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ? 5 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 2× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Game Center Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits HomeCare™
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service Game Accelerator QoS.

QoS by Device

HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 8.3 × 8.3 × 2.0 in
(212 × 212 × 51.8 mm)
Package Contents Wi-Fi Router Archer GX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz-1:
11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm
5 GHz-2 (Gaming Band):
11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm
2.4 GHz:
11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm
