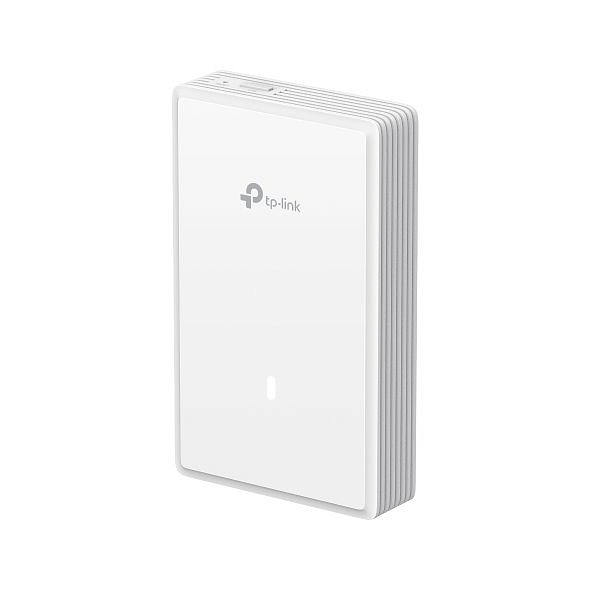

EAP725-Wall Nástenný BE3600 Wi-Fi 7 prístupový bod BE3600 Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2,4 GHz). 4 priestorové dátové toky (Spatial Streams) 1× 2.5G PoE vstupný port + 1× 2.5G PoE priechodný port + 2× Gigabitové RJ45 porty. Šírka pásma 160 MHz umožňuje oveľa viac súbežných prenosov. Multi-RU zabezpečujú vysoký výkon vašej siete. Pokročilé funkcie: Centralizovaná správa, Mesh a plynulý roaming. HARDWARE FEATURES Interface • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) Physical Security Lock No Button Reset, LED Power Supply 802.3at/bt PoE Max. Power Consumption • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) Dimensions ( W x D x H ) 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) Antenna 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Bluetooth V5.2 Mounting Wall Mounting (Screws included) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog System Log SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. WIRELESS FEATURES Coverage 50 ?(600 ft2)** Concurrent Clients 250+§ Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming? • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP Wireless Security • Captive Portal Authentication? • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 & band 2, EIRP) <25 dBm (5GHz, band 3, EIRP) OTHERS Certification CE, RoHS Package Content • BE3600 Wall Plate Wi-Fi 7 Access Point • Installation Guide • Mounting Kits System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
