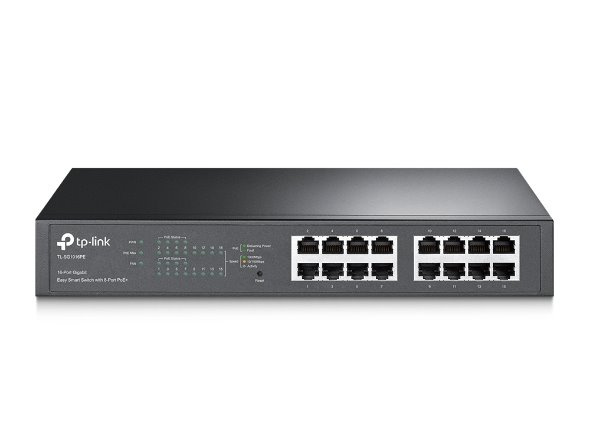

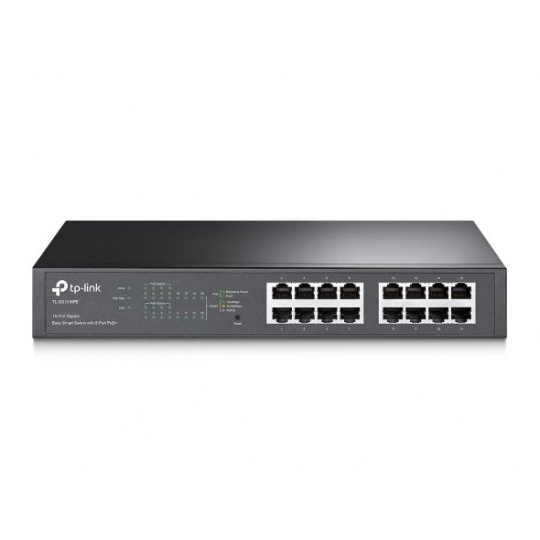

16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ TL-SG1016PE 16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable With a total PoE power budget of 110W, up to 30W per port Works with IEEE 802.3af/at compliant devices, expanding home and office networks Simple network set-up on top of plug-and-play connectivity Web-based user interface and management utility simplify configuration HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) Fan Quantity 1 PoE Ports (RJ45) Standard: 802.3 at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 110W Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 14.72W (110V/60Hz with no PD connected) 131.42W (110V/60Hz with 110W PD connected) Max Heat Dissipation 50.22 BTU/h (with no PD connected) 448.41 BTU/h (with 110W PD connected) PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.8Mbps MAC Address Table 8K Packet Buffer Memory 4.1Mbit Jumbo Frame 9KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI Easy Smart Configuration Utility Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1016PE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet System Requirements Microsoft® Windows® for running Utility Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
