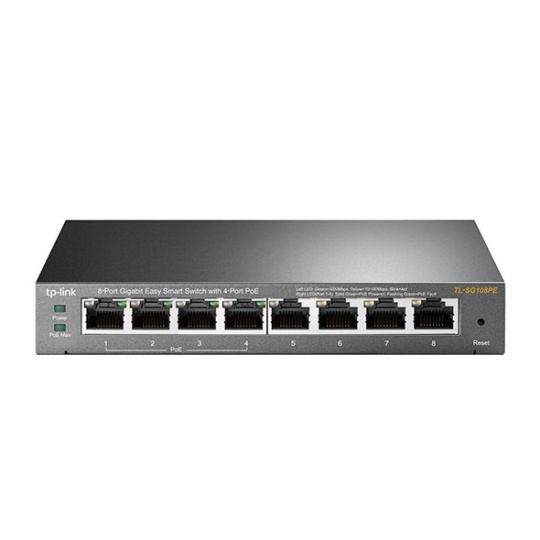

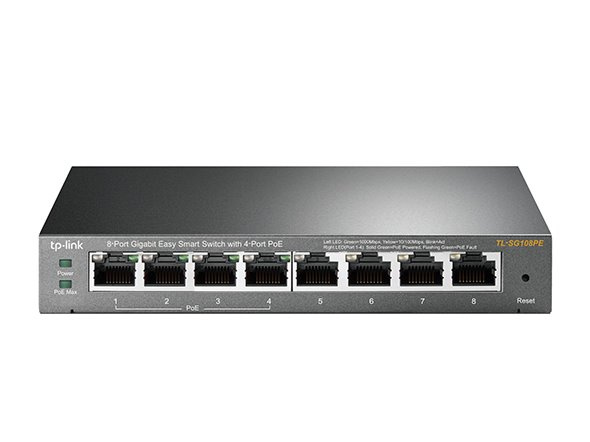

8-Port Gigabit Easy Smart Switch with 4-Port PoE TL-SG108PE 8 10/100/1000Mbps RJ45 ports Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable Supports PoE power up to 55W for all PoE ports Provides network monitoring, traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W Max Power Consumption 5.15W (220V/50Hz with no PD connected) 65.18W (220V/50Hz with 55W PD connected) Max Heat Dissipation 17.57 BTU/h (with no PD connected) 222.39 BTU/h (with 55W PD connected) PERFORMANCE Switching Capacity 16Gbps Packet Forwarding Rate 11.9Mpps MAC Address Table 4K Packet Buffer Memory 1.5Mb Jumbo Frame 15KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI Easy Smart Configuration Utility Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG108PE Power Adapter Installation Guide Rubber Feet System Requirements Microsoft® Windows® for running Utility Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing
