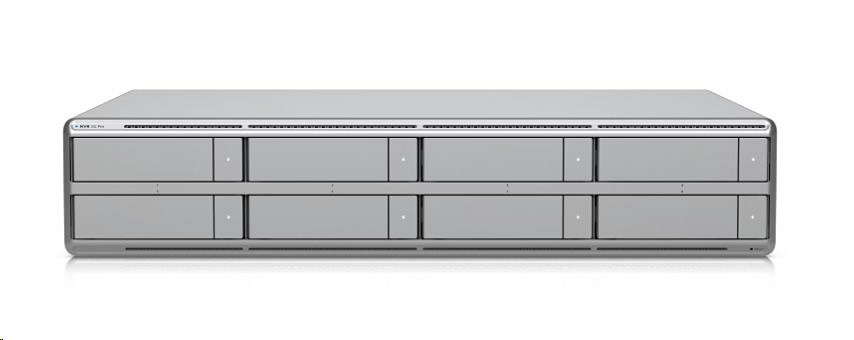

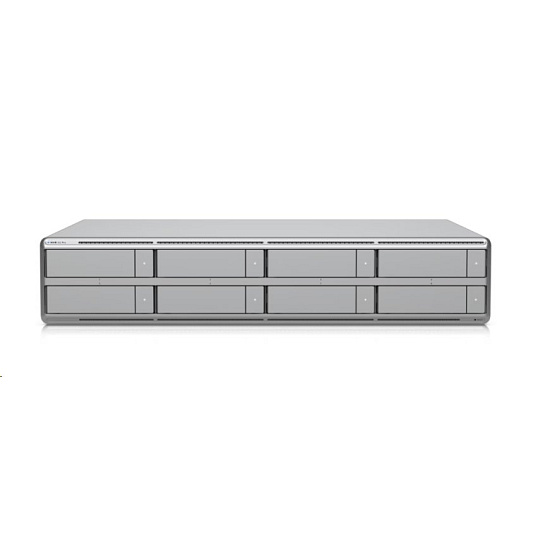

2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5”/3.5” HDD bays, and support for up to (50) 4K or (100) Full HD cameras.


Overview
Dimensions
442.4 x 87.4 x 325 mm
(17.4 x 3.4 x 12.8")
Managed Cameras
(100) HD
(70) 2K
(50) 4K
Managed Access Hubs
150+
Storage Capacity
(8) 2.5/3.5" drive bays
Data Protection
yes
Networking Interface
(1) 10G SFP+ port
(1) 2.5 GbE RJ45 port
Power Redundancy
yes
Form Factor
Rack Mount (2U)
Door Access Support
yes
Management Application
UniFi Protect
UniFi Access
UniFi Connect

Hardware
Hard Drive Capacity
(8) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives
155W
Max. Power Consumption
200W
Power Method
(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC
Power Supply
AC/DC, Internal PSU, 200W
Processor
Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm)
(1) Prime core (3.2 GHz)
(4) Performance cores (2.8 GHz)
(3) Efficiency cores (2.0 GHz)
Memory
16 GB
Management
Ethernet
Bluetooth
Weight
8.4 kg (18.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
LEDs
Ethernet
yes
SFP+
yes
HDD
yes
RPS
yes
System
yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
yes
Certifications
CE, FCC, IC

Software
Application Requirements
UniFi Protect
Version 7.1.55 or later.
UniFi Access
Version 4.2.16 or later.
